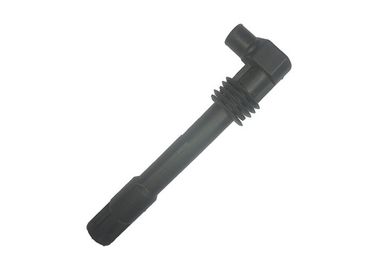

Black Spark Plug Lead Connectors With EMC Resistor High Voltage / Temp Withstand

Black Spark Plug Lead Connectors With EMC Resistor High Voltage / Temp Withstand
Black Spark Plug Lead Connectors With EMC Resistor High Voltage / Temp Withstand

Large Image :  Black Spark Plug Lead Connectors With EMC Resistor High Voltage / Temp Withstand

Product Details:
Place of Origin: CHINA
Brand Name: TY
Certification: ISO/TS16949:2009
Model Number: TY0010C03
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: Carton size:490*310*190mm Single carton volume:0.0289m3 Package quantity:250Pcs N.W:19KG;G.W:20KG
Delivery Time: 15 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 200,000 pcs per month

Black Spark Plug Lead Connectors With EMC Resistor High Voltage / Temp Withstand

Description
Product Name: Spark Plug Connector/plug/boiler Connector Color: Black Boot And Black Resistor
Withstand Vol: ≥30KV Resistance: 5KΩ±20%
Standard: ISO6856/ISO3808 Customers: JANMOR
High Light:

Spark Plug Wire Connector

,

Ignition Coil Connector

,

EMC Resistor Spark Plug Lead Connectors

Black Spark Plug Connector with EMC Resistor High Voltage and Temp Withstand





Advantages:



This spark plug connector is made of silicone rubber, which is odorless. Because of its high quality silicone and PPS resistor, it can work in -20℃~155℃. Except for heat resistance, the connector also has great cold tolerance, dielectric properties, acid and alkali resistance. Service life of the connector can be more than 50,000 km or 3 years. During this period, there is no transformation and dilatation ocurring on the product.



Our company has its own machining ceter, which can design and produce molds by ourselves. So both boot and resistor of the connector can be developed according to customer's requirements.



Technical ditails:



Raw material properties

Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking (155±2.5℃X168h

Product characteristics

Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

148.5±1.5 mm

Resistance

5KΩ±20%

Assembly dimension

Cable entry diameter

5.5±0.5mm

Assembly dimension: connecting cable

Black Spark Plug Lead Connectors With EMC Resistor High Voltage / Temp Withstand 0

Plug entry diameter

9±0.5mm

Assembly dimension: connecting spark plug

Black Spark Plug Lead Connectors With EMC Resistor High Voltage / Temp Withstand 1





Applications:

  1. This spark plug connector is used in the ignition system of auto engine, connecting ignition cable and spark plug.
