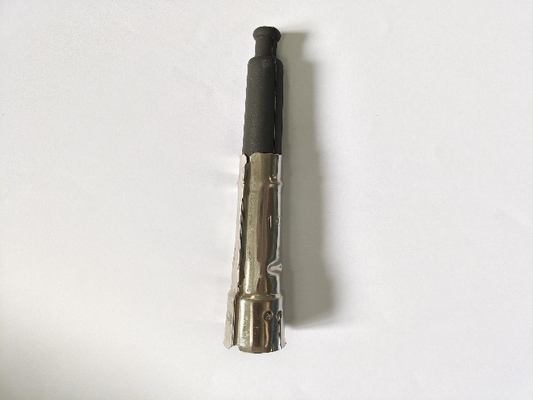

Heat Tolerance Automotive Spark Plug Connector ISO Spark Plug Cable Connectors

Heat Tolerance Automotive Spark Plug Connector ISO Spark Plug Cable Connectors

  • High Light

    Automotive Spark Plug Connector

    ,

    Heat Tolerance Spark Plug Connector

    ,

    ISO spark plug cable connectors

  • Product Name
    Spark Plug Connector / Boilder Connector
  • Feature
    Cold And Heat Tolerance
  • Standard
    ISO 6856 / ISO 3808
  • Customers
    JANMOR
  • Resistance
    5KΩ±20%
  • Withstand Voltage
    ≥30KV
  • Place of Origin
    CHINA
  • Brand Name
    TY
  • Certification
    ISO/TS 16949: 2009
  • Model Number
    TY0031C01
  • Minimum Order Quantity
    1000 PCS
  • Price
    Negotiation
  • Packaging Details
    Carton size: 390*315*235mm;Single carton volume: 0.029m3;Package quantity: 500Pcs/box; N.W: 21KG;G.W: 22KG
  • Delivery Time
    15 working days after payment
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    200,000 pcs per month

Heat Tolerance Automotive Spark Plug Connector ISO Spark Plug Cable Connectors

Cold and Heat Tolerance Assembly Connectors in Auto Ignition System linking High Voltage Wire



1. Product strenght:

  • Great heat resistance, cold tolerance, and dielectric properties
  • Odoerless and nontoxic silicone rubber jacket
  • Smooth shield with clear Logo, which can be changed according to the customer
  • Prevent electromagnetic intrusion.
  • No deformation, acid and alkali resistance, and no dilatation.
  • Good uniformity of connector's dimension.
  • More than 3 years useful time
  • Can customize



2. Raw material properties for spark plug connector:



Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking





3. Product dimensions:



Cable entry diameter

5.5±0.5mm

Assembly dimension: connecting cable

Heat Tolerance Automotive Spark Plug Connector ISO Spark Plug Cable Connectors 0

Plug entry diameter

9.6±0.5mm

Assembly dimension: connecting spark plug

    Heat Tolerance Automotive Spark Plug Connector ISO Spark Plug Cable Connectors 1





4. Product characteristics:



Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

100.5±2mm

Resistance

5KΩ±20%
