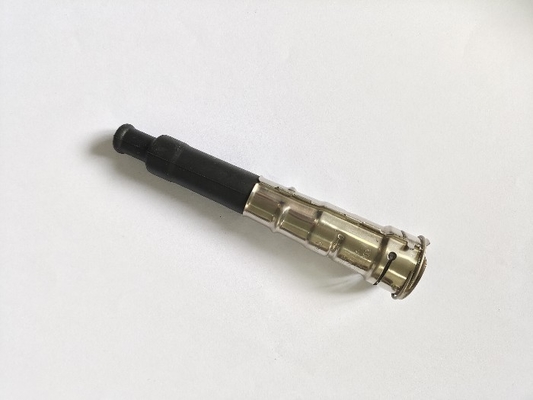

Heat Resistant Spark Plug Connector 13mm Ignition Lead Connectors
  • name

Heat Resistant Spark Plug Connector 13mm Ignition Lead Connectors

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 390*315*235mm；Single carton volume: 0.029m3；Package quantity: 500Pcs/box； N.W: 21KG；G.W: 22KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 200,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0023C01
Name:
Spark Plug Connector
Application:
High Voltage Ignition System
Resistance:
5KΩ±20%
Overall Length:
13mm
Standard:
ISO 6856 / ISO 3808
Customers:
JANMOR
Highlight:

TY0023C01 Spark Plug Connector

,

Heat Resistant Spark Plug Connector

,

13mm ignition lead connectors

Product Description

Heat Resistant Spark Plug Connector / Plug / Boiler Connector ,  Withstand High Voltage



Product Description:

  • The spark plug connector has great heat resistance, cold tolerance, and dielectric properties.
  • The boot of the connector is made by Silicone rubber, which is odorless.
  • The shield of the product owns a smooth surface. Logo can be added according to the customer.
  • The shield Can prevent electromagnetic interference.
  • The spark plug connector has the features of no deformation, acid and alkali resistance, and no dilatation.
  • Automated assembly process make the connector having stable and conforming dimensions.
  • Service life of the connector is not less than 50,000 km or 3 years.
  • The connector can be designed and developed according to customer’s requirements.

Product Specifications:



Raw material properties



Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking

Product characteristics



Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

113±3 mm

Resistance

5KΩ±20%

Assembly dimension



Cable entry diameter

5±0.5mm

Assembly dimension: connecting cable

Heat Resistant Spark Plug Connector 13mm Ignition Lead Connectors 0

Plug entry diameter

10.5±0.5mm

Assembly dimension: connecting spark plug

   Heat Resistant Spark Plug Connector 13mm Ignition Lead Connectors 1







Applications:

  • The connector is used in the ignition system of auto engine, see picture below:

Heat Resistant Spark Plug Connector 13mm Ignition Lead Connectors 2
