ISO 6856 Spark Plug Cable Connectors Stable Performance

ISO 6856 Spark Plug Cable Connectors Stable Performance

  • High Light

    ISO 6856 spark plug cable connectors

    ,

    BorgWarner spark plug cable connectors

    ,

    30KV spark plug cable ends

  • Product Name
    Connecting Spark Plug
  • Standard
    ISO 6856 / ISO 3808
  • Customers
    BorgWarner, JANMOR Etc.
  • Resistance
    5KΩ±20%
  • Type
    Assembly Parts
  • Withstand Voltage
    ≥30KV
  • Place of Origin
    CHINA
  • Brand Name
    TY
  • Certification
    ISO/TS 16949: 2009
  • Model Number
    TY0019C01
  • Minimum Order Quantity
    1000 PCS
  • Price
    Negotiation
  • Packaging Details
    Carton size: 390*315*235mm;Single carton volume: 0.029m3;Package quantity: 500Pcs/box; N.W: 21.5KG;G.W: 22.5KG
  • Delivery Time
    15 working days after payment
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    200,000 pcs per month

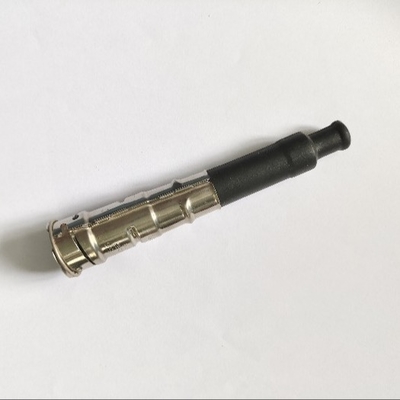

ISO 6856 Spark Plug Cable Connectors Stable Performance

Connecting Spark Plug and High Voltage Ignition Cable , Straight Connector with Stable Performance



We do Mold design, development, Tooling, and Testing independently.

Advanced equipment and expect technical engineers can make sure the mold good quality control.





1. Connector features:

  • Great heat resistance, cold tolerance, and dielectric properties
  • Odoerless and nontoxic silicone rubber jacket
  • Smooth shield with clear Logo, which can be changed according to the customer
  • Prevent electromagnetic intrusion.
  • No deformation, acid and alkali resistance, and no dilatation.
  • Good uniformity of connector's dimension.
  • More than 3 years useful time
  • Can customize



2. Connector material properties:



Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking





3. Connector characteristics:



Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

110±3mm

Resistance

5KΩ±20%





4. Connector dimensions:



Cable entry diameter

5.5±0.5mm

Assembly dimension: connecting cable

ISO 6856 Spark Plug Cable Connectors Stable Performance 0

Plug entry diameter

8.5±0.5mm

Assembly dimension: connecting spark plug

    ISO 6856 Spark Plug Cable Connectors Stable Performance 1





5. Applications:

  • This spark plug connector is used in the ignition system of auto engine, see picture below:

ISO 6856 Spark Plug Cable Connectors Stable Performance 2

FAQ
1.How About the sample policy?
Most of our samples are free of charge, Customers are only have to pay for the shipping cost by international express like: DHL, TNT, UPS and FedEx.
2.What are the shipping methods?
Ocean shipment to the port near from you; Air shipment to the shipment near from your company; Door to door service by international express.
3.What about the payment options?
PayPal, Escrow, West Union and other payment as request. T/T(30%deposit, 70% before shipment)
4.When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
