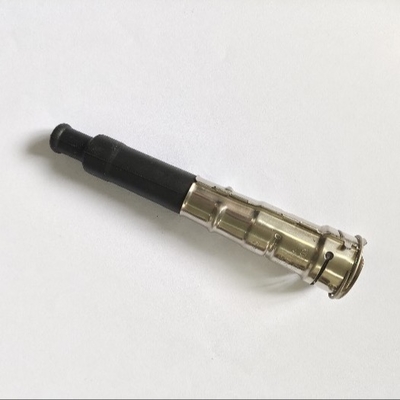

Heat Resistant Spark Plug Connector Withstand High Voltage

Heat Resistant Spark Plug Connector Withstand High Voltage
Heat Resistant Spark Plug Connector Withstand High Voltage

Large Image :  Heat Resistant Spark Plug Connector Withstand High Voltage

Product Details:
Place of Origin: CHINA
Brand Name: TY
Certification: ISO/TS 16949: 2009
Model Number: TY0023C01
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: Carton size: 390*315*235mm;Single carton volume: 0.029m3;Package quantity: 500Pcs/box; N.W: 21KG;G.W: 22KG
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 200,000 pcs per month

Heat Resistant Spark Plug Connector Withstand High Voltage

Description
Name: Spark Plug Connector Boiler Application: High Voltage Ignition System
Resistance: 5KΩ±20% Overall Length: 13mm
Standard: ISO 6856 / ISO 3808 Feature: Heat Resistant
High Light:

Heat Resistant Spark Plug Connector

,

High Voltage Spark Plug Connector

,

ISO 6856 spark plug connector boot



Heat Resistant Spark Plug Connector / Plug / Boiler Connector ,  Withstand High Voltage



Product Description:



  • The spark plug connector has the features of no deformation, acid and alkali resistance, and no dilatation.
  • Automated assembly process make the connector having stable and conforming dimensions.
  • Service life of the connector is not less than 50,000 km or 3 years.
  • The connector can be designed and developed according to customer’s requirements.
  • The spark plug connector has great heat resistance, cold tolerance, and dielectric properties.
  • The boot of the connector is made by Silicone rubber, which is odorless.
  • The shield of the product owns a smooth surface. Logo can be added according to the customer.
  • The shield Can prevent electromagnetic interference.

Product Specifications:



Raw material properties



Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking

Product characteristics



Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

113±3 mm

Resistance

5KΩ±20%

Assembly dimension



Cable entry diameter

5±0.5mm

Assembly dimension: connecting cable

Heat Resistant Spark Plug Connector Withstand High Voltage 0

Plug entry diameter

10.5±0.5mm

Assembly dimension: connecting spark plug

   Heat Resistant Spark Plug Connector Withstand High Voltage 1







Applications:

  • The connector is used in the ignition system of auto engine, see picture below:

Heat Resistant Spark Plug Connector Withstand High Voltage 2



Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.



FAQ

* Whether these products quality assured ?
Our company wire harness are CE,FC,ROHS listed. Also, we have strict QC, all products are 100% tested before delivery. Quality is assured.
* When I want customized products, how to do?
We have Equipped with professional equipments, technicians & skilled empolyees, OEM & customized service is welcome. Drawings / samples are required. Of course, purchase quantity should meet our MOQ.
*If I want to purchase, how to pay ?
Generally we do T/T in 30% deposit before production,70% balance against faxing copy of B/L . Also payment terms are negotiable depending on customer's request.
*After I pay, what about the lead time and shipping method?
Goods can be delivered by by air express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as they wish. As for the Lead time, 10~30 working days.

1) We can make the samples according to customer’s samples or designs.
2) Our designer team can finish the samples timely, the exact sample delivery time depends on.
