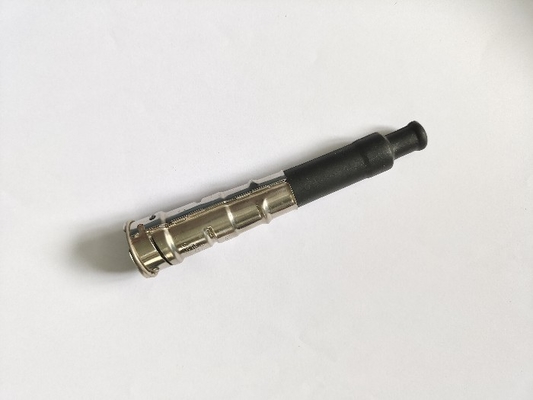

5KΩ High Voltage Spark Plug Connector TY0019C01 Spark Plug Wire Connector

Large Image : 5KΩ High Voltage Spark Plug Connector TY0019C01 Spark Plug Wire Connector

Product Details:

Place of Origin:	CHINA
Brand Name:	TY
Certification:	ISO/TS 16949: 2009
Model Number:	TY0019C01

Payment & Shipping Terms:

Minimum Order Quantity:	1000 PCS
Price:	Negotiation
Packaging Details:	Carton size: 390315235mm；Single carton volume: 0.029m3；Package quantity: 500Pcs/box； N.W: 21.5KG；G.W: 22.5KG
Delivery Time:	15 working days after payment
Payment Terms:	T/T, Western Union
Supply Ability:	200,000 pcs per month

Contact Now

5KΩ High Voltage Spark Plug Connector TY0019C01 Spark Plug Wire Connector

Description

Product Name:	Spark Plug Connector / Boilder Connector	Standard:	ISO 6856 / ISO 3808
Customers:	BorgWarner, JANMOR Etc.	Resistance:	5KΩ±20%
Type:	Assembly Parts	Withstand Voltage:	≥30KV
High Light:	5KΩ Spark Plug Connector , High Voltage Spark Plug Connector , TY0019C01 Spark Plug Wire Connector

Connecting Spark Plug and High Voltage Ignition Cable , Straight Connector with Stable Performance

1. Connector features:

Great heat resistance, cold tolerance, and dielectric properties
Odoerless and nontoxic silicone rubber jacket
Smooth shield with clear Logo, which can be changed according to the customer
Prevent electromagnetic intrusion.
No deformation, acid and alkali resistance, and no dilatation.
Good uniformity of connector's dimension.
More than 3 years useful time
Can customize

2. Connector material properties:

Shore-A hardness	55±5A
Elongation at break	≥300%
Tear strength	≥15N/mm
Dielectric strength	≥20KV/mm
Tensile strength	≥6N/mm²
Tensile deformation	≤20%
Density	1.17±0.02 g/cm3
Withstand voltage 18KV for 30minutes	NO breakdown
Surface resistance	≥10¹¹Ω
Ageing resistance	155±2.5℃X168h,Without any cracking

3. Connector characteristics:

Usage temperature	-20℃-155℃
Breakdown voltage (AC)	≥30KV
Insertion and removal forces	20-70N
Overall length	110±3mm
Resistance	5KΩ±20%

4. Connector dimensions:

Cable entry diameter	5.5±0.5mm
Assembly dimension: connecting cable
Plug entry diameter	8.5±0.5mm
Assembly dimension: connecting spark plug

5. Applications:

This spark plug connector is used in the ignition system of auto engine, see picture below:

5KΩ High Voltage Spark Plug Connector TY0019C01 Spark Plug Wire Connector 2
