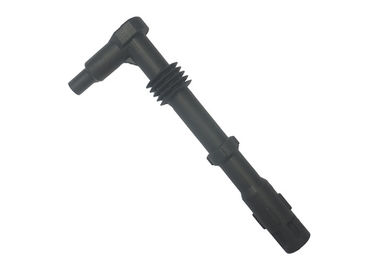

Ignition Coil Connector Spark Plug Connector TY0016C01 Durable Dielectric Properties
  • name

Ignition Coil Connector Spark Plug Connector TY0016C01 Durable Dielectric Properties

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 470*360*290mm；Single carton volume: 0.049m3；Package quantity: 300Pcs/box； N.W: 26KG；G.W: 27KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 200,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0016C01
Resistance:
5KΩ±20%
Withstand Voltage:
≥30KV
Standard:
ISO 6856 / ISO 3808
Customers:
BorgWarner, JANMOR Etc.
Material:
PPS And Silicone Rubber
Color:
Black, Or Customize
Highlight:

Spark Plug Wire Connector

,

Ignition Coil Connector

,

TY0016C01 Spark Plug Connector

Product Description

Auto Parts Black Interface Unit with Stable and Durable Performance , Withstand High Temp





Connector Features:

  1. Great heat resistance, cold tolerance, and dielectric properties.
  2. Odorless and nontoxic
  3. Vulcanization molding
  4. No deformation, acid and alkali resistance, and no dilatation.
  5. Excellent uniformity of connector's dimension.
  6. Long life: more than 50,000 km or 3 years.
  7. Can be designed and developed according to customer’s requirements.



Connectors Specifications:



Raw material properties



Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking

Product characteristics



Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

178±2mm

Resistance

5KΩ±20%

Assembly dimension



Plug assembly depth

36±1mm
Cable entry diameter 6±0.5mm

Assembly dimension: connecting cable

Ignition Coil Connector Spark Plug Connector TY0016C01 Durable Dielectric Properties 0

Plug entry diameter

10±0.5mm

Assembly dimension: connecting spark plug

    Ignition Coil Connector Spark Plug Connector TY0016C01 Durable Dielectric Properties 1









Applications:

  1. The spark plug connector is used in the ignition system of auto engine, see picture below:
