Product Details:
|
| Resistance: | 1KΩ±20% | Withstand Voltage: | ≥30KV |
|---|---|---|---|
| Color: | Black Silicone Rubber And Black Resistor | Application: | Connecting Wire And Spark Plug |
| Feature: | Assemble With Spark Plug By Special Wing | Customers: | JANMOR Etc. |
| High Light: | Spark Plug Lead Connectors,Ignition Lead Connectors,Bended Spark Plug Lead Connector |
||

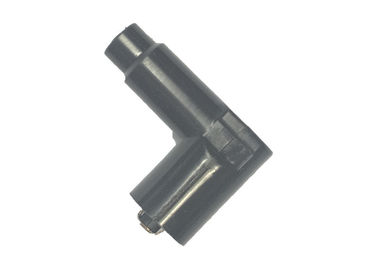

Black 90 Degree Bended Spark Plug Lead Connector with Special Wing Spring
Specifications and description of spark plug wire connector:
|
Raw material properties |
Shore-A hardness |
55±5A |
|
Elongation at break |
≥300% |
|
|
Tear strength |
≥15N/mm |
|
|
Dielectric strength |
≥20KV/mm |
|
|
Tensile strength |
≥6N/mm2 |
|
|
Tensile deformation |
≤20% |
|
|
Density |
1.17±0.02 g/cm3 |
|
|
Withstand voltage 18KV for 30minutes |
NO breakdown |
|
|
Surface resistance |
≥1011Ω |
|
|
Ageing resistance |
155±2.5℃X168h,Without any cracking |
|
|
Connector characteristics |
Usage temperature |
-20℃-155℃ |
|
Breakdown voltage (AC) |
≥30KV |
|
|
Insertion and removal forces |
20-70N |
|
|
Overall length |
/ |
|
|
Resistance |
1KΩ±20% |
|
|
Lifetime |
≥50,000km / ≥3years |
|
|
Heat and cold resistance |
||
|
Great dielectric properties |
||
|
Acid and alkali resistance |
||
|
No deformation, no dilatation |
||
|
Good uniformity of dimension |
||
|
Can be customized based on customers |
||
|
Assembly dimension |
Cable entry diameter |
5.5±0.5mm |
|
Assembly dimension: connecting cable |
|
|
|
Plug entry diameter |
14±0.5mm |
|
|
Assembly dimension: connecting spark plug |
|
|
Applications:
The connector is used in the ignition system of auto engine, responsible for connecting high voltage ignition wire and spark plug.
Advantages:
All products are manufactured under requirements of ISO 6856 and ISO 3803, so the quality of Tianyi's connectors is
Because of the high quality, all products are exported to Europe and supplied to famous corporation like JANMOR.
