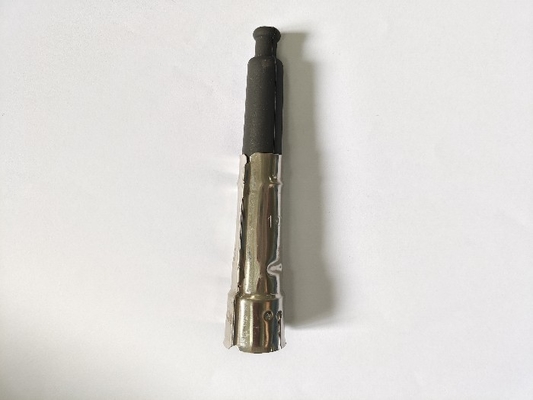

30KV 1KΩ Spark Plug Wire Terminal TY0008C03 Spark Plug Electrical Connector

30KV 1KΩ Spark Plug Wire Terminal TY0008C03 Spark Plug Electrical Connector

  • High Light

    30KV Spark Plug Electrical Connector

    ,

    TY0008C03 Spark Plug Wire Terminal

    ,

    ISO 6856 Spark Plug Wire Terminal

  • Resistance
    1KΩ±20%
  • Withstand Voltage
    ≥30KV
  • Type
    TY0008C03
  • Application
    Auto Ignition System
  • Standard
    ISO 6856 / ISO 3808
  • Name
    Car Parts Spark Plug Lead Connectors
  • Place of Origin
    CHINA
  • Brand Name
    TY
  • Certification
    ISO/TS 16949: 2009
  • Model Number
    TY0008C03
  • Minimum Order Quantity
    1000 PCS
  • Price
    Negotiation
  • Packaging Details
    Carton size: 490*310*190mm;Single carton volume: 0.029m3;Package quantity: 1000Pcsp;N.W.: 17KG;G.W.: 18KG
  • Delivery Time
    15 working days after payment
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    250,000 pcs per month

30KV 1KΩ Spark Plug Wire Terminal TY0008C03 Spark Plug Electrical Connector



Auto Parts High / Low Temp Resistant Silicone Rubber Plug connecting Spark Plug





Standard for spark plug wire connector:

  1. ISO 6856
  2. ISO 3808



Customers:

  1. BorgWarner, JANMOR etc.



Specifications and description:



Raw material properties

Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking

Connector characteristics

Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

/

Resistance

1KΩ±20%

Lifetime

≥50,000km / ≥3years

Heat and cold resistance

Great dielectric properties

Acid and alkali resistance

No deformation, no dilatation

Good uniformity of dimension

Can be customized based on customers

Assembly dimension

Cable entry diameter

5.5±0.5mm

Assembly dimension: connecting cable

30KV 1KΩ Spark Plug Wire Terminal TY0008C03 Spark Plug Electrical Connector 0

Plug entry diameter

14±0.5mm

Assembly dimension: connecting spark plug

30KV 1KΩ Spark Plug Wire Terminal TY0008C03 Spark Plug Electrical Connector 1



Connector characteristics



brand new: Brand new, fashion design and easy to use.
Silicone: Made of high quality silicone material, which is durable and has a long service life. Silicone boots are durable and can be used for a long time to keep the spark plugs working well.
spark plug wire rubber boots ends: This is a new spark plug wire rubber boots. Spark plug wire rubber boots, better protect your engine.



Heat and cold resistance
Great dielectric properties
Acid and alkali resistance
No deformation, no dilatation
Good uniformity of dimension
Can be customized based on customers





Applications:

  1. The connector is used in the ignition system of auto engine, see picture below:

30KV 1KΩ Spark Plug Wire Terminal TY0008C03 Spark Plug Electrical Connector 2
