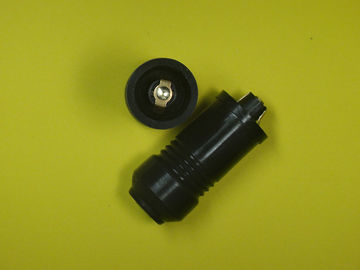

Auto Parts High Low Temp Resistant Spark Plug Cable Connectors Replacement
  • name

Auto Parts High Low Temp Resistant Spark Plug Cable Connectors Replacement

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 490*310*190mm；Single carton volume: 0.029m3；Package quantity: 1000Pcsp；N.W.: 17KG；G.W.: 18KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 250,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0008C03
Resistance:
1KΩ±20%
Withstand Voltage:
≥30KV
Type:
TY0008C03
Application:
Auto Ignition System
Standard:
ISO 6856 / ISO 3808
Name:
Car Parts Spark Plug Lead Connectors
Highlight:

ISO3808 Spark Plug Cable Connectors

,

15N/mm Spark Plug Cable Connectors

,

8.5mm Spark Plug Wire Connector

Product Description



Auto Parts High Low Temp Resistant Spark Plug Cable Connectors Replacement



Application:
Universal which Fit 8-8.5mm wires.
Please check size carefully before you purchasing



Standard for spark plug wire connector:

  1. ISO 6856
  2. ISO 3808



Customers:

  1. BorgWarner, JANMOR etc.

Connector characteristics



Heat and cold resistance
Great dielectric properties
Acid and alkali resistance
No deformation, no dilatation
Good uniformity of dimension
Can be customized based on customers



Applications:

  1. The connector is used in the ignition system of auto engine, see picture below:

Auto Parts High Low Temp Resistant Spark Plug Cable Connectors Replacement 0

Specifications and description:



Raw material properties Shore-A hardness 55±5A
Elongation at break ≥300%
Tear strength ≥15N/mm
Dielectric strength ≥20KV/mm
Tensile strength ≥6N/mm2
Tensile deformation ≤20%
Density 1.17±0.02 g/cm3
Withstand voltage 18KV for 30minutes NO breakdown
Surface resistance ≥1011Ω
Ageing resistance 155±2.5℃X168h,Without any cracking
Connector characteristics Usage temperature -20℃-155℃
Breakdown voltage (AC) ≥30KV
Insertion and removal forces 20-70N
Overall length /
Resistance 1KΩ±20%
Lifetime ≥50,000km / ≥3years
Heat and cold resistance
Great dielectric properties
Acid and alkali resistance
No deformation, no dilatation
Good uniformity of dimension
Can be customized based on customers
Assembly dimension Cable entry diameter 5.5±0.5mm
Assembly dimension: connecting cable Auto Parts High Low Temp Resistant Spark Plug Cable Connectors Replacement 1
Plug entry diameter 14±0.5mm
Assembly dimension: connecting spark plug Auto Parts High Low Temp Resistant Spark Plug Cable Connectors Replacement 2



Established in 1999, Nanjing Tianyi (TY) is a specialized manufacturer of automobile parts such as ignition coils, ignition cable sets, insulating sleeve and resistor for spark plug. Located in Dongping Industrial Park of Lishui County in Nanjing, just 10, 0.5 and 1 kilometers away from Nanjing Lukou International Airport, Jiangsu Yanjiang Highway and Ninghang Highway individually,TY enjoy convenient access to major transportation networks.



The company occupies about 17,350 square meters area and owns many advanced facilities. In the factory, workshops for rubber boot and subassembly, resistor, ignition coil, non-framed coil and molding are all established.



The rubber boot and subassembly workshop adopts rubber injection molding machine. The daily production capability has been over 100 thousand. These products are mainly applied in varieties of automobile and motorcycle engines.



With plastic injection molding machine in the resistor workshop, the daily capacity can reach over 80 thousand. These resistors are mainly used in auto engines and boiler ignition system.
