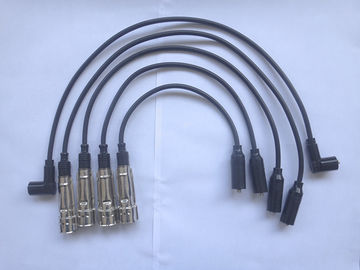

Silicone Spark Plug Lead Connectors 90 Degree Bended 1 KΩ

Silicone Spark Plug Lead Connectors 90 Degree Bended 1 KΩ

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 490*310*190mm;Single carton volume: 0.029m3;Package quantity: 1000Pcsp;N.W.: 19KG;G.W.: 20KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 250,000 pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0006C03
Feature:
90 Degree
Application:
Auto Ignition System
Resistance:
1 KΩ
Withstand Voltage:
≥30KV
Usage:
Park Plug Wire Connector
Customer:
BorgWarner, JANMOR Etc.
Highlight:

90Degree Spark Plug Lead Connectors

,

1KΩ Spark Plug Lead Connectors

,

30KV Silicone Spark Plug Wire Connector

Product Description

1 KΩ 90 Degree Bended Silicone Spark Plug Wire Connector with High Uniformity of Dimension





1. Raw material properties:

  • Shore-A hardness-------------------------------------------55±5A
  • Elongation at break-----------------------------------------≥300%
  • Tear strength------------------------------------------------≥15N/mm
  • Dielectric strength-------------------------------------------≥20KV/mm
  • Tensile strength---------------------------------------------≥6N/mm2
  • Tensile deformation-----------------------------------------≤20%
  • Density--------------------------------------------------------1.17±0.02 g/cm3
  • Withstand voltage 18KV for 30minutes------------------NO breakdown
  • Surface resistance------------------------------------------≥1011Ω
  • Ageing resistance-------------------------------------------155±2.5℃X168h,Without any cracking



2. Product characteristics:

  • Usage temperature------------------------------------------20℃~155℃
  • Breakdown voltage (AC)-----------------------------------≥30KV
  • Insertion and removal forces------------------------------20N-70N
  • Overall length------------------------------------------------/
  • Resistance----------------------------------------------------1KΩ±20%
  • Lifetime--------------------------------------------------------≥50,000km / ≥3years
  • Heat and cold resistance
  • Great dielectric properties
  • Acid and alkali resistance
  • No deformation, no dilatation
  • Good uniformity of dimension
  • Can be customized based on customers



3. Assembly dimension:



  • Cable entry diameter----------------------------------------5.5±0.5mm
  • Assembly dimension: connecting cable------------------Silicone Spark Plug Lead Connectors 90 Degree Bended 1 KΩ 0
  • Plug entry diameter------------------------------------------14.5±0.5mm
  • Assembly dimension: connecting spark plug-----------Silicone Spark Plug Lead Connectors 90 Degree Bended 1 KΩ 1





4. Standard:

  • ISO 6856 / ISO 3808



5. Customers:

  • BorgWarner, JANMOR etc.
  •

6. Applications:

  • The spark plug wire connector is used in the ignition system of auto engine, see picture below:

Silicone Spark Plug Lead Connectors 90 Degree Bended 1 KΩ 2



Features & Specification:

Great for replacement car or motorcycle spark plug wire and easy to install by yourselves.
The plug wire boot and terminal kits are perfect for enthusiasts who build their own wire sets or need to replace damaged boots.
The boots are made from a high temperature silicone compound and feature a black finish.
The terminals have large crimp tabs to grasp the wire, and wide contacts to grip the distributor cap receptacle.
