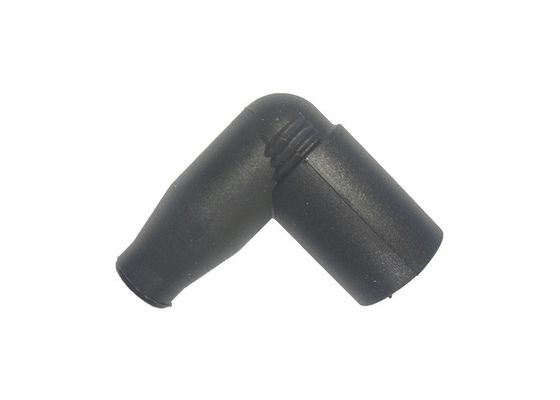

1 KΩ 90 Degree Auto Small Engine Spark Plug Wire Connector Ignition Lead Connectors

1 KΩ 90 Degree Auto Small Engine Spark Plug Wire Connector Ignition Lead Connectors

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 490*310*190mm;Single carton volume: 0.029m3;Package quantity: 1000Pcsp;N.W.: 19KG;G.W.: 20KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 250,000 pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0006C03
Feature:
No Deformation
Application:
Auto Ignition System
Resistance:
1KΩ±20%
Withstand Voltage:
≥30KV
Usage Temp:
-20℃~155℃
Customer:
BorgWarner, JANMOR Etc.
Highlight:

Spark Plug Lead Connectors

,

Ignition Lead Connectors

,

90 Degree Spark Plug Wire Connector

Product Description

1 KΩ 90 Degree Bended Silicone Spark Plug Wire Connector with High Uniformity of Dimension





1. Standard:

  • ISO 6856 / ISO 3808



2. Customers:

  • BorgWarner, JANMOR etc.



3. Raw material properties:

  • Shore-A hardness-------------------------------------------55±5A
  • Elongation at break-----------------------------------------≥300%
  • Tear strength------------------------------------------------≥15N/mm
  • Dielectric strength-------------------------------------------≥20KV/mm
  • Tensile strength---------------------------------------------≥6N/mm2
  • Tensile deformation-----------------------------------------≤20%
  • Density--------------------------------------------------------1.17±0.02 g/cm3
  • Withstand voltage 18KV for 30minutes------------------NO breakdown
  • Surface resistance------------------------------------------≥1011Ω
  • Ageing resistance-------------------------------------------155±2.5℃X168h,Without any cracking



4. Product characteristics:

  • Usage temperature------------------------------------------20℃~155℃
  • Breakdown voltage (AC)-----------------------------------≥30KV
  • Insertion and removal forces------------------------------20N-70N
  • Overall length------------------------------------------------/
  • Resistance----------------------------------------------------1KΩ±20%
  • Lifetime--------------------------------------------------------≥50,000km / ≥3years
  • Heat and cold resistance
  • Great dielectric properties
  • Acid and alkali resistance
  • No deformation, no dilatation
  • Good uniformity of dimension
  • Can be customized based on customers



5. Assembly dimension:



  • Cable entry diameter----------------------------------------5.5±0.5mm
  • Assembly dimension: connecting cable------------------1 KΩ 90 Degree Auto Small Engine Spark Plug Wire Connector Ignition Lead Connectors 0
  • Plug entry diameter------------------------------------------14.5±0.5mm
  • Assembly dimension: connecting spark plug-----------1 KΩ 90 Degree Auto Small Engine Spark Plug Wire Connector Ignition Lead Connectors 1





6. Applications:

  • The spark plug wire connector is used in the ignition system of auto engine, see picture below:

1 KΩ 90 Degree Auto Small Engine Spark Plug Wire Connector Ignition Lead Connectors 2
