1 KΩ Straight Black Silicone Rubber Unit Spark Plug Cable Ignition Coil Wire Connector
  • name
  • name

1 KΩ Straight Black Silicone Rubber Unit Spark Plug Cable Ignition Coil Wire Connector

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 440*325*420mm；Single carton volume: 0.049m3；Package quantity: 1000Pcsp；N.W.: 26KG；G.W.: 27KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 250,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0003C02
Standard:
ISO 6856 / ISO 3808
Customer:
BorgWarner, JANMOR Etc.
Application:
Auto Engine For Ignition
Feature:
Heat, High Voltage, Acid, Alkali Resistance
Resistance:
1KΩ±20%
Usage Temp Range:
-20℃~155℃
Highlight:

Ignition Lead Connectors

,

Spark Plug Connectors

,

Straight Ignition Coil Wire Connector

Product Description

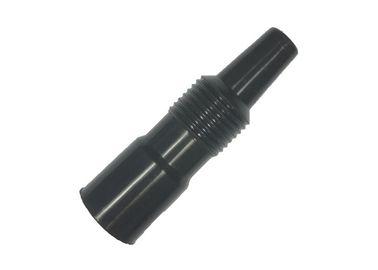

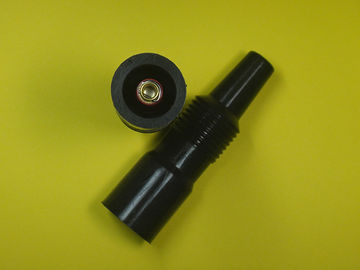

1 KΩ Straight Black Silicone Rubber Unit with Terminal connecting Spark Plug and Ignition Cable





Customers of spark plug wire connector:

  • BorgWarner, JANMOR etc.



Product characteristics:



Usage temperature

-20℃~155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20N-70N

Overall length

78.5±2mm

Resistance

1KΩ±20%

Lifetime

≥50,000km / ≥3years
Standard ISO 6856 / ISO 3808

Heat and cold resistance

Great dielectric properties

Acid and alkali resistance

No deformation, no dilatation

Good uniformity of dimension

Can be customized based on customers





Assembly dimension:





Cable entry diameter



4.5±0.5mm

Assembly dimension: connecting cable

1 KΩ Straight Black Silicone Rubber Unit Spark Plug Cable Ignition Coil Wire Connector 0



Plug entry diameter



18±0.5mm

Assembly dimension: connecting spark plug

1 KΩ Straight Black Silicone Rubber Unit Spark Plug Cable Ignition Coil Wire Connector 1





Raw material properties:



Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking





Applications of spark plug wire connector:

  • The connector is used in the ignition system of auto engine, see picture below:

1 KΩ Straight Black Silicone Rubber Unit Spark Plug Cable Ignition Coil Wire Connector 2
