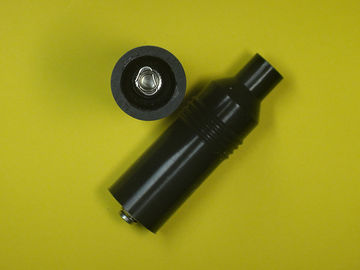

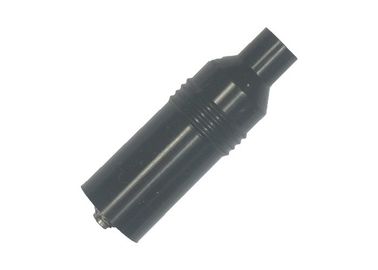

ISO Voltage Resistance / High Temp Spark Plug Wire Connector Straight TY0006C02
  • name
  • name

ISO Voltage Resistance / High Temp Spark Plug Wire Connector Straight TY0006C02

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 490*310*190mm；Single carton volume: 0.029m3；Package quantity: 1000Pcsp；N.W.: 18KG；G.W.: 19KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 250,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0006C02
Resistance:
1KΩ±20%
Withstand Voltage:
≥30KV
Application:
Auto Ignition System
Feature:
High Temp And Voltage Resistance
Standard:
ISO 6856 / ISO 3808
Customer:
BorgWarner, JANMOR Etc.
Highlight:

Ignition Lead Connectors

,

Spark Plug Connectors

,

High Temp Spark Plug Wire Connector

Product Description

Straight Black Spark Plug Wire Connector with Good Uniformity of Dimension and Durableness







1. Product characteristics:



Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20N-70N

Overall length

64.5±0.1mm

Resistance

1KΩ±20%

Lifetime

≥50,000km / ≥3years
Standard ISO 6856 / ISO 3808

Heat and cold resistance

Great dielectric properties

Acid and alkali resistance

No deformation, no dilatation

Good uniformity of dimension

Can be customized based on customers





2. Assembly dimension:





Cable entry diameter



5.5±0.5mm

Assembly dimension: connecting cable

ISO Voltage Resistance / High Temp Spark Plug Wire Connector Straight TY0006C02 0



Plug entry diameter



14.5+0.5mm

Assembly dimension: connecting spark plug

ISO Voltage Resistance / High Temp Spark Plug Wire Connector Straight TY0006C02 1





3. Raw material properties:



Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking







4. Customers of spark plug wire connector:

  • BorgWarner, JANMOR etc.



5. Applications of spark plug wire connector:

  • The connector is used in the ignition system of auto engine, see picture below:



Tags:

Ignition Lead Connectors,

Spark Plug Lead Connectors,

Spark Plug Connectors
