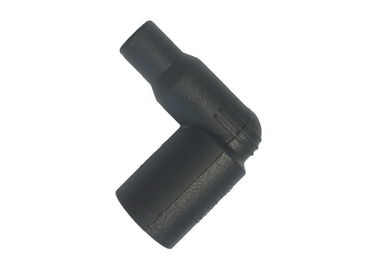

TY0009C03 Bended Spark Plug Connector Replacement , Car Ignition Coil Connector
  • name

TY0009C03 Bended Spark Plug Connector Replacement , Car Ignition Coil Connector

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 400*300*155mm；Single carton volume: 0.0186m3；Package quantity: 540Pcsp；N.W.: 9KG；G.W.: 10KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 250,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0009C03
Type:
Assembly Parts
Shape:
90 Degree Bended
Resistance:
1KΩ±20%
Withstand Voltage:
≥30KV
Application:
Auto Ignition System
Feature:
High Unformity Of Dimension
Color:
Black
Material:
Silicone And PBT
Highlight:

Spark Plug Lead Connectors

,

Ignition Lead Connectors

,

Bended Spark Plug Connector Replacement

Product Description

High Temperature and Voltage Resistant Bended Silicone Rubber Connector for Car Ignition







1. Raw material properties:



Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking





2. Product characteristics:



Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20N-70N

Overall length

/

Resistance

1KΩ±20%

Lifetime

≥50,000km / ≥3years
Standard ISO 6856 / ISO 3808

Heat and cold resistance

Great dielectric properties

Acid and alkali resistance

No deformation, no dilatation

Good uniformity of dimension

Can be customized based on customers





3. Assembly dimension:





Cable entry diameter



5.5±0.5mm

Assembly dimension: connecting cable

TY0009C03 Bended Spark Plug Connector Replacement , Car Ignition Coil Connector 0



Plug entry diameter



14.3±0.5mm

Assembly dimension: connecting spark plug

TY0009C03 Bended Spark Plug Connector Replacement , Car Ignition Coil Connector 1





4. Customers for spark plug wire connector:

  • BorgWarner, JANMOR etc.



5. Connector Applications:

  • The connector is used in the ignition system of auto engine, see picture below:

TY0009C03 Bended Spark Plug Connector Replacement , Car Ignition Coil Connector 2
