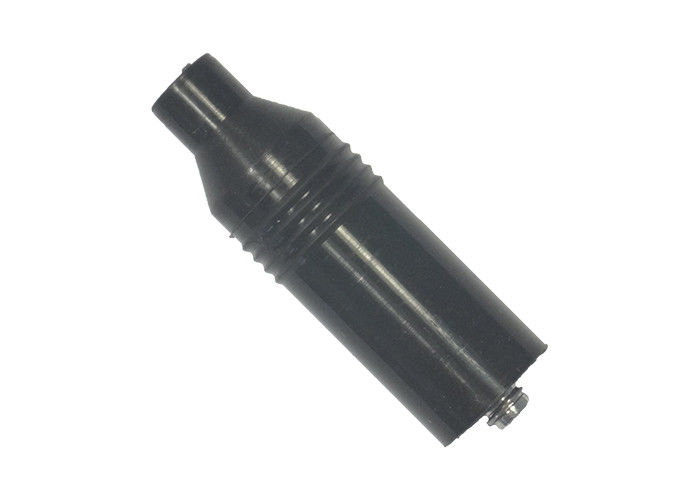

TY0001C02 Auto Ignition System Spark Plug Wire Connection Acid and Alkali Resistant
-
High Light
Ignition Lead Connectors
,Spark Plug Connectors
,Alkali Resistant Spark Plug Wire Connection
-
FeatureHeat Resistance, Cold Tolerance
-
ApplicationCar Ignition System
-
Resistance1KΩ±20%
-
Withstand Voltage≥30KV
-
StandardISO 6856 / ISO 3808
-
CustomersBorgWarner, JANMOR Etc.
-
Place of OriginCHINA
-
Brand NameTY
-
CertificationISO/TS 16949: 2009
-
Model NumberTY0001C02
-
Minimum Order Quantity1000 PCS
-
PriceNegotiation
-
Packaging DetailsCarton size: 400*300*140mm；Single carton volume: 0.0168m3；Package quantity: 450Pcsp；N.W.: 8KG；G.W.: 9KG
-
Delivery Time15 working days after payment
-
Payment TermsT/T, Western Union
-
Supply Ability250,000 pcs per month
TY0001C02 Auto Ignition System Spark Plug Wire Connection Acid and Alkali Resistant
Acid and Alkali Resistant Silicone Rubber Connecting Unit for Auto High Voltage Ignition System
1. Specifications and description:
|
Raw material properties |
Shore-A hardness |
55±5A |
|
Elongation at break |
≥300% |
|
|
Tear strength |
≥15N/mm |
|
|
Dielectric strength |
≥20KV/mm |
|
|
Tensile strength |
≥6N/mm2 |
|
|
Tensile deformation |
≤20% |
|
|
Density |
1.17±0.02 g/cm3 |
|
|
Withstand voltage 18KV for 30minutes |
NO breakdown |
|
|
Surface resistance |
≥1011Ω |
|
|
Ageing resistance |
155±2.5℃X168h,Without any cracking |
|
|
Product characteristics |
Usage temperature |
-20℃-155℃ |
|
Breakdown voltage (AC) |
≥30KV |
|
|
Insertion and removal forces |
20N-70N |
|
|
Overall length |
65±1.5mm |
|
|
Resistance |
1KΩ±20% |
|
|
Lifetime |
≥50,000km / ≥3years |
|
| Standard | ISO 6856 / ISO 3808 | |
|
Heat and cold resistance |
||
|
Great dielectric properties |
||
|
Acid and alkali resistance |
||
|
No deformation, no dilatation |
||
|
Good uniformity of dimension |
||
|
Can be customized based on customers |
||
|
Assembly dimension |
Cable entry diameter |
5.5±0.2mm |
|
Assembly dimension: connecting cable |
|
|
|
Plug entry diameter |
14.5+0.5mm |
|
|
Assembly dimension: connecting spark plug |
|
|
2. Customers:
- BorgWarner, JANMOR etc.
3. Applications:
- The spark plug wire connector is used in the ignition system of auto engine, see picture below:
