High Voltage Heat Resistant Spark Plug Wire Connector Bended With PBT Resistor

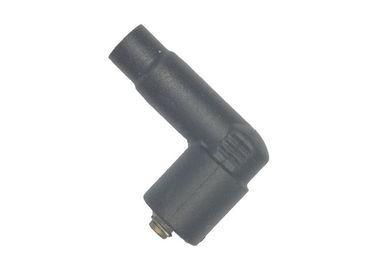

Large Image : High Voltage Heat Resistant Spark Plug Wire Connector Bended With PBT Resistor

Product Details:

Place of Origin:	CHINA
Brand Name:	TY
Certification:	ISO/TS 16949: 2009
Model Number:	TY0005C03

Payment & Shipping Terms:

Minimum Order Quantity:	1000 PCS
Price:	Negotiation
Packaging Details:	Carton size: 490310190mm；Single carton volume: 0.029m3；Package quantity: 1000Pcsp；N.W.: 16KG；G.W.: 17KG
Delivery Time:	15 working days after payment
Payment Terms:	T/T, Western Union
Supply Ability:	250,000 pcs per month

Contact Now

High Voltage Heat Resistant Spark Plug Wire Connector Bended With PBT Resistor

Description

Customers:	BorgWarner, JANMOR Etc.	Standard:	ISO 6856 / ISO 3808
Feature:	High And Low Temp Resistance	Application:	Car Ignition System
Resistance:	1KΩ±20%	Withstand Voltage:	≥30KV
Type:	Assembly Parts	Color And Material:	Black Silicone And Red PBT
Highlight:	Spark Plug Lead Connectors , Ignition Lead Connectors , PBT Resistor Spark Plug Wire Connector

90 Degree Bended Spark Plug Wire Connector with PBT Resistor , Withstand High Voltage

Specifications and description:

Raw material properties	Shore-A hardness	55±5A
	Elongation at break	≥300%
	Tear strength	≥15N/mm
	Dielectric strength	≥20KV/mm
	Tensile strength	≥6N/mm2
	Tensile deformation	≤20%
	Density	1.17±0.02 g/cm3
	Withstand voltage 18KV for 30minutes	NO breakdown
	Surface resistance	≥10¹¹Ω
	Ageing resistance	155±2.5℃X168h,Without any cracking
Product characteristics	Usage temperature	-20℃-155℃
	Breakdown voltage (AC)	≥30KV
	Insertion and removal forces	20-70N
	Overall length	/
	Resistance	1KΩ±20%
	Lifetime	≥50,000km / ≥3years
	Heat and cold resistance
	Great dielectric properties
	Acid and alkali resistance
	No deformation, no dilatation
	Good uniformity of dimension
	Can be customized based on customers
Assembly dimension	Cable entry diameter	6.2±0.5mm
	Assembly dimension: connecting cable
	Plug entry diameter	14±0.5mm
	Assembly dimension: connecting spark plug

Standard:

ISO 6856
ISO 3808

Customers:

BorgWarner, JANMOR etc.

Applications:

The spark plug wire connector is used in the ignition system of auto engine, see picture below:

High Voltage Heat Resistant Spark Plug Wire Connector Bended With PBT Resistor 2
