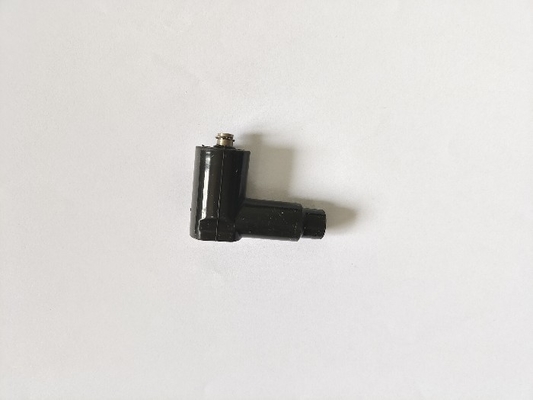

TY0008C03 Spark Plug Wire Terminal Electrical Connector 30KV 6N/mm2

TY0008C03 Spark Plug Wire Terminal Electrical Connector 30KV 6N/mm2
TY0008C03 Spark Plug Wire Terminal Electrical Connector 30KV 6N/mm2

Large Image :  TY0008C03 Spark Plug Wire Terminal Electrical Connector 30KV 6N/mm2

Product Details:
Place of Origin: CHINA
Brand Name: TY
Certification: ISO/TS 16949: 2009
Model Number: TY0008C03
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: Carton size: 490*310*190mm;Single carton volume: 0.029m3;Package quantity: 1000Pcsp;N.W.: 17KG;G.W.: 18KG
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 250,000 pcs per month

TY0008C03 Spark Plug Wire Terminal Electrical Connector 30KV 6N/mm2

Description
Resistance: 1KΩ±20% Withstand Voltage: ≥30KV
Type: TY0008C03 Application: Auto Ignition System
Standard: ISO 6856 / ISO 3808 Name: Car Parts Spark Plug Lead Connectors
High Light:

6N/mm2 Spark Plug Wire Terminal

,

ISO Electrical Spark Plug Wire Terminal

,

Spark Plug Electrical Connector 30KV



Auto Parts High / Low Temp Resistant Silicone Rubber Plug connecting Spark Plug





Standard for spark plug wire connector:

  1. ISO 6856
  2. ISO 3808



Customers:

  1. BorgWarner, JANMOR etc.



Specifications and description:



Raw material properties

Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking

Connector characteristics

Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

/

Resistance

1KΩ±20%

Lifetime

≥50,000km / ≥3years

Heat and cold resistance

Great dielectric properties

Acid and alkali resistance

No deformation, no dilatation

Good uniformity of dimension

Can be customized based on customers

Assembly dimension

Cable entry diameter

5.5±0.5mm

Assembly dimension: connecting cable

TY0008C03 Spark Plug Wire Terminal Electrical Connector 30KV 6N/mm2 0

Plug entry diameter

14±0.5mm

Assembly dimension: connecting spark plug

TY0008C03 Spark Plug Wire Terminal Electrical Connector 30KV 6N/mm2 1









Applications:

  1. The connector is used in the ignition system of auto engine, see picture below:

TY0008C03 Spark Plug Wire Terminal Electrical Connector 30KV 6N/mm2 2
