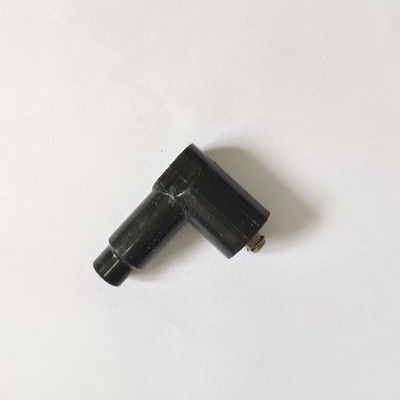

90 Degree Bended Spark Plug Cable Connectors With High Uniformity Of Dimension

90 Degree Bended Spark Plug Cable Connectors With High Uniformity Of Dimension

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 490*310*190mm;Single carton volume: 0.029m3;Package quantity: 1000Pcsp;N.W.: 19KG;G.W.: 20KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 250,000 pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0006C03
Feature:
90 Degree
Application:
Auto Ignition System
Resistance:
1 KΩ
Withstand Voltage:
≥30KV
Usage:
Park Plug Wire Connector
Customer:
BorgWarner, JANMOR Etc.
Highlight:

Silicone spark plug cable connectors

,

90 Degree Bended spark plug cable connectors

,

1 KΩ female spark plug wire ends

Product Description

1 KΩ 90 Degree Bended Silicone Spark Plug Wire Connector with High Uniformity of Dimension



OEM BRAND
lower price
replacement policy
on time delievery
welcome customer's designs and logos.





1. Raw material properties:

  • Shore-A hardness-------------------------------------------55±5A
  • Elongation at break-----------------------------------------≥300%
  • Tear strength------------------------------------------------≥15N/mm
  • Dielectric strength-------------------------------------------≥20KV/mm
  • Tensile strength---------------------------------------------≥6N/mm2
  • Tensile deformation-----------------------------------------≤20%
  • Density--------------------------------------------------------1.17±0.02 g/cm3
  • Withstand voltage 18KV for 30minutes------------------NO breakdown
  • Surface resistance------------------------------------------≥1011Ω
  • Ageing resistance-------------------------------------------155±2.5℃X168h,Without any cracking



2. Product characteristics:

  • Usage temperature------------------------------------------20℃~155℃
  • Breakdown voltage (AC)-----------------------------------≥30KV
  • Insertion and removal forces------------------------------20N-70N
  • Overall length------------------------------------------------/
  • Resistance----------------------------------------------------1KΩ±20%
  • Lifetime--------------------------------------------------------≥50,000km / ≥3years
  • Heat and cold resistance
  • Great dielectric properties
  • Acid and alkali resistance
  • No deformation, no dilatation
  • Good uniformity of dimension
  • Can be customized based on customers



3. Assembly dimension:



  • Cable entry diameter----------------------------------------5.5±0.5mm
  • Assembly dimension: connecting cable------------------90 Degree Bended Spark Plug Cable Connectors With High Uniformity Of Dimension 0
  • Plug entry diameter------------------------------------------14.5±0.5mm
  • Assembly dimension: connecting spark plug-----------90 Degree Bended Spark Plug Cable Connectors With High Uniformity Of Dimension 1





4. Standard:

  • ISO 6856 / ISO 3808



5. Customers:

  • BorgWarner, JANMOR etc.
  •

6. Applications:

  • The spark plug wire connector is used in the ignition system of auto engine, see picture below:

90 Degree Bended Spark Plug Cable Connectors With High Uniformity Of Dimension 2

Established in 1999, Nanjing Tianyi (TY) is a specialized manufacturer of automobile parts such as ignition coils, ignition cable sets, insulating sleeve and resistor for spark plug. Located in Dongping Industrial Park of Lishui County in Nanjing, just 10, 0.5 and 1 kilometers away from Nanjing Lukou International Airport, Jiangsu Yanjiang Highway and Ninghang Highway individually,TY enjoy convenient access to major transportation networks.



The company occupies about 17,350 square meters area and owns many advanced facilities. In the factory, workshops for rubber boot and subassembly, resistor, ignition coil, non-framed coil and molding are all established.



The rubber boot and subassembly workshop adopts rubber injection molding machine. The daily production capability has been over 100 thousand. These products are mainly applied in varieties of automobile and motorcycle engines.



With plastic injection molding machine in the resistor workshop, the daily capacity can reach over 80 thousand. These resistors are mainly used in auto engines and boiler ignition system.
