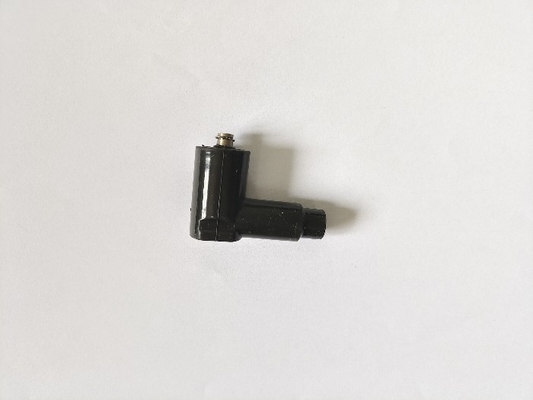

90 Degree Silicone Spark Plug Wire Connector 1 KΩ High Uniformity Dimension

90 Degree Silicone Spark Plug Wire Connector 1 KΩ High Uniformity Dimension

  • High Light

    Silicone Spark Plug Wire Connector

    ,

    90 Degree Spark Plug Wire Connector

    ,

    1 KΩ spark plug terminal connector

  • Feature
    90 Degree
  • Application
    Auto Ignition System
  • Resistance
    1 KΩ
  • Withstand Voltage
    ≥30KV
  • Usage
    Park Plug Wire Connector
  • Customer
    BorgWarner, JANMOR Etc.
  • Place of Origin
    CHINA
  • Brand Name
    TY
  • Certification
    ISO/TS 16949: 2009
  • Model Number
    TY0006C03
  • Minimum Order Quantity
    1000 PCS
  • Price
    Negotiation
  • Packaging Details
    Carton size: 490*310*190mm;Single carton volume: 0.029m3;Package quantity: 1000Pcsp;N.W.: 19KG;G.W.: 20KG
  • Delivery Time
    15 working days after payment
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    250,000 pcs per month

90 Degree Silicone Spark Plug Wire Connector 1 KΩ High Uniformity Dimension

1 KΩ 90 Degree Bended Silicone Spark Plug Wire Connector with High Uniformity of Dimension





1. Raw material properties:

  • Shore-A hardness-------------------------------------------55±5A
  • Elongation at break-----------------------------------------≥300%
  • Tear strength------------------------------------------------≥15N/mm
  • Dielectric strength-------------------------------------------≥20KV/mm
  • Tensile strength---------------------------------------------≥6N/mm2
  • Tensile deformation-----------------------------------------≤20%
  • Density--------------------------------------------------------1.17±0.02 g/cm3
  • Withstand voltage 18KV for 30minutes------------------NO breakdown
  • Surface resistance------------------------------------------≥1011Ω
  • Ageing resistance-------------------------------------------155±2.5℃X168h,Without any cracking



2. Product characteristics:

  • Usage temperature------------------------------------------20℃~155℃
  • Breakdown voltage (AC)-----------------------------------≥30KV
  • Insertion and removal forces------------------------------20N-70N
  • Overall length------------------------------------------------/
  • Resistance----------------------------------------------------1KΩ±20%
  • Lifetime--------------------------------------------------------≥50,000km / ≥3years
  • Heat and cold resistance
  • Great dielectric properties
  • Acid and alkali resistance
  • No deformation, no dilatation
  • Good uniformity of dimension
  • Can be customized based on customers



3. Assembly dimension:



  • Cable entry diameter----------------------------------------5.5±0.5mm
  • Assembly dimension: connecting cable------------------90 Degree Silicone Spark Plug Wire Connector 1 KΩ High Uniformity Dimension 0
  • Plug entry diameter------------------------------------------14.5±0.5mm
  • Assembly dimension: connecting spark plug-----------90 Degree Silicone Spark Plug Wire Connector 1 KΩ High Uniformity Dimension 1





4. Standard:

  • ISO 6856 / ISO 3808



5. Customers:

  • BorgWarner, JANMOR etc.
  •

6. Applications:

  • The spark plug wire connector is used in the ignition system of auto engine, see picture below:

90 Degree Silicone Spark Plug Wire Connector 1 KΩ High Uniformity Dimension 2
