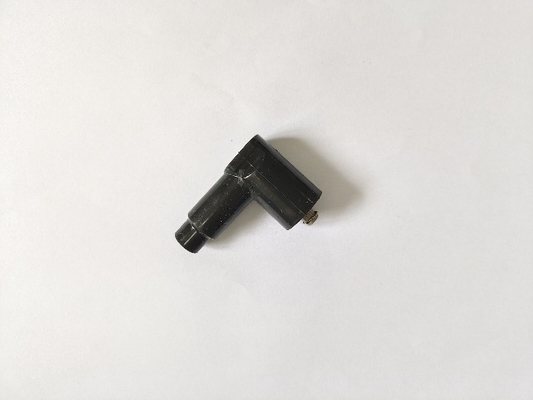

Rubber Spark Plug Wire Connector High Temperature Voltage Resistant

Rubber Spark Plug Wire Connector High Temperature Voltage Resistant

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 400*300*155mm;Single carton volume: 0.0186m3;Package quantity: 540Pcsp;N.W.: 9KG;G.W.: 10KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 250,000 pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0009C03
Type:
Rubber Connector
Shape:
90 Degree Bended
Resistance:
1KΩ±20%
Withstand Voltage:
≥30KV
Application:
Auto Ignition System
Feature:
High Temperature And Voltage Resistant
Color:
Car Ignition
Material:
Silicone And PBT
Highlight:

TY0009C03 Spark Plug Wire Connector

,

Rubber Spark Plug Wire Connector

,

black spark plug lead connectors

Product Description

High Temperature and Voltage Resistant Bended Silicone Rubber Connector for Car Ignition



1. Product characteristics:



Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20N-70N

Overall length

/

Resistance

1KΩ±20%

Lifetime

≥50,000km / ≥3years

Standard ISO 6856 / ISO 3808

Heat and cold resistance

Great dielectric properties

Acid and alkali resistance

No deformation, no dilatation

Good uniformity of dimension

Can be customized based on customers





2. Raw material properties:



Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking





3. Assembly dimension:





Cable entry diameter



5.5±0.5mm

Assembly dimension: connecting cable

Rubber Spark Plug Wire Connector High Temperature Voltage Resistant 0



Plug entry diameter



14.3±0.5mm

Assembly dimension: connecting spark plug

Rubber Spark Plug Wire Connector High Temperature Voltage Resistant 1





4. Customers for spark plug wire connector:

  • BorgWarner, JANMOR etc.



5. Connector Applications:

  • The connector is used in the ignition system of auto engine, see picture below:

Rubber Spark Plug Wire Connector High Temperature Voltage Resistant 2
