TY0025C05 Compact Structure 70Ω Frameless Black Relay Induction Coil for Vacuum Relays

TY0025C05 Compact Structure 70Ω Frameless Black Relay Induction Coil for Vacuum Relays

MOQ: 500 PCS
Price: Negotiation
Standard Packaging: Box size: 19.7*12.4*3.9cm;Package quantity: 150PCS/box;Carton size: 34*34*35cm;Single carton volume: 0.04046m3;Package quantity: 16box/carton, 2400PCS/carton;N.W.: 20.5KG;G.W.: 21.5KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 100,000 pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0025C05
Material:
EMC/lacquered Wire
Feature:
Compact Stucture, Huge Power
Usage Temp:
-55℃~125℃
Working Voltage:
≤12V
Highlight:

Inductance Coil

,

Inductive Coil

Product Description

70Ω Frameless Black Relay Induction Coil for Vacuum Relays with Compact Structure





Specifications:

  1. Working temperature(℃)-------  -55~125
  2. Rated voltage(V)------12
  3. Resistance(Ω)-------103±5%
  4. Medium pressure(500V,50Hz)--------No leakage



Features:

  1. Smooth surface, no bubble,  blowhole, defect, loose or burr
  2. Made of high-performance EMC and high-temperature lacquered wire.
  3. Small volume but large power
  4. High performance and high temperature resistance
  5. Apply to vacuum relays, and military field such as aircraft, radar or warship.
  6. Be able to develop more kinds as customers’ requirements



Applications:

  1. Electronic components, such as relay
  2. Mechanical and electrical industry, like different instrument and meter
  3. Military industry, such as aircraft, radar, warship

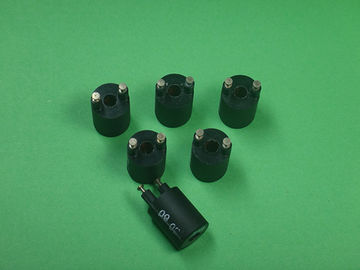

TY0025C05 Compact Structure 70Ω Frameless Black Relay Induction Coil for Vacuum Relays 0
