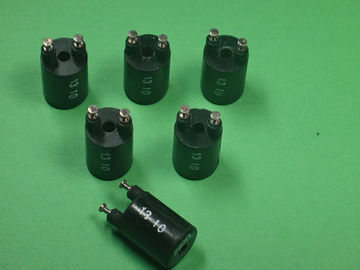

Name: EMC / lacquered wire Frameless Inductive Relay Coil Electronic components
Brand: Nanjing Tianyi Automobile Electric Manufacturing Co., Ltd.
SKU: TY0013C05
Availability: InStock

MOQ:	500 PCS
Price:	Negotiation
Standard Packaging:	Box size: 19.712.43.9cm；Package quantity: 150PCS/box；Carton size: 343435cm；Single carton volume: 0.04046m3；Package quantity: 16box/carton, 2400PCS/carton；N.W.: 20.5KG；G.W.: 21.5KG
Delivery Period:	15 working days after payment
Payment Method:	T/T, Western Union
Supply Capacity:	100,000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

ISO/TS 16949: 2009

Model Number

TY0013C05

Name:

Frameless Inductive Coil

Material:

EMC/lacquered Wire

Surface:

Smooth Without Bubble, Hole, And Defect

Working Environment:

-55℃~125℃

Highlight:

Inductance Coil

Inductive Coil

Product Description

Small-sized Frameless Inductive Relay Coil with Smooth Surface and no Defect / no Loose / no Burr

Specifications:

Item	Technical Parameter
Working temperature(℃)	-55~125
Rated voltage(V)	26.5
Resistance(Ω)	290±5%
Ampere-turn(A*N)	/
Medium pressure(500V,50Hz)	No leakage

Features:

Smooth surface, no bubble, blowhole, defect, loose or burr
Made of high-performance EMC and high-temperature lacquered wire.
Small volume but large power
High performance and high temperature resistance
Apply to vacuum relays, and military field such as aircraft, radar or warship.
Be able to develop more kinds as customers’ requirements

Applications:

Applicable industries	Specific application
Electronic components	Relay
Mechanical and electrical industry	Different instrument and meter
Military industry	Aircraft, radar, warship

EMC / lacquered wire Frameless Inductive Relay Coil Electronic components 0
