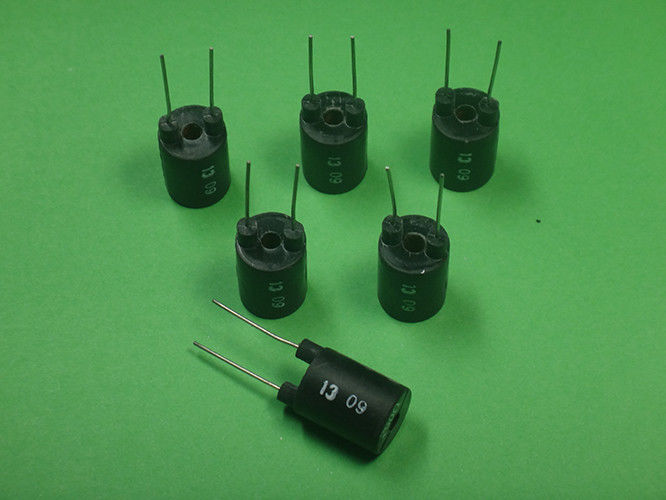

High Temperature Lacquered Wire Induction Coil with Small Volume

High Temperature Lacquered Wire Induction Coil with Small Volume
High Temperature Lacquered Wire Induction Coil with Small Volume

Large Image :  High Temperature Lacquered Wire Induction Coil with Small Volume

Product Details:
Place of Origin: CHINA
Brand Name: TY
Certification: ISO/TS 16949: 2009
Model Number: TY0009C05
Payment & Shipping Terms:
Minimum Order Quantity: 500 PCS
Price: Negotiation
Packaging Details: Box size: 19.7*12.4*3.9cm;Package quantity: 150PCS/box;Carton size: 34*34*35cm;Single carton volume: 0.04046m3;Package quantity: 16box/carton, 2400PCS/carton;N.W.: 20.5KG;G.W.: 21.5KG
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 100,000 pcs per month

High Temperature Lacquered Wire Induction Coil with Small Volume

Description
Product Name: Frameless Coil For Relay Color: Black
Surface: Smooth Without Bubble, Hole, And Defect Feature: High Temperature Resistance
High Light:

Inductance Coil

,

Inductive Coil

Small Volume Induction Coil with High Temperature Lacquered Wire and High-performance Plastic





1. Description:

  • The product adopts high-performance EMC plastic material and high-temperature lacquered wire.
  • Small volume, large power, high performance and good temperature endurance
  • Apply to vacuum relays, and military field such as aircraft, radar or warship.
  • Has various different types and be able to develop more kinds as customers’ requirements



2. Applications:



Applicable industries

Specific application

Electronic components

Relay

Mechanical and electrical industry

Different instrument and meter

Military industry

Aircraft, radar, warship







3. Specifications:



Item

Technical Parameter

Working temperature(℃)

-55~125

Rated voltage(V)

26.5

Resistance(Ω)

290±5%

Ampere-turn(A*N)

/

Medium pressure(500V,50Hz)

No leakage

Appearance

Smooth surface, no bubble,  blowhole, defect, loose or burr







High Temperature Lacquered Wire Induction Coil with Small Volume 0
