1 KΩ TY0028B04 Ignition Suppression Resistor Good Insulation and Electrical Properties

1 KΩ TY0028B04 Ignition Suppression Resistor Good Insulation and Electrical Properties

  • High Light

    Spark Plug Resistance

    ,

    Resistor Spark Plug

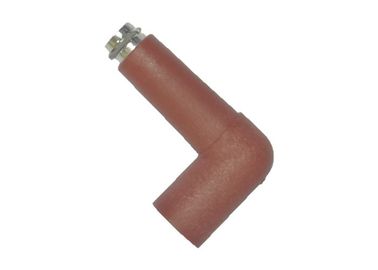

  • Appearance
    Red And 90 Degree Bended
  • Feature
    High Voltage Resistance
  • Material
    PBT
  • Resistance
    1KΩ±20%
  • Standard
    ISO 6856 / ISO 3808
  • Customers
    BorgWarner, JANMOR Etc.
  • Place of Origin
    CHINA
  • Brand Name
    TY
  • Certification
    ISO/TS 16949: 2009
  • Model Number
    TY0028B04
  • Minimum Order Quantity
    1000 pcs
  • Price
    negotiation
  • Packaging Details
    Based on customer's demand
  • Delivery Time
    15 working days after payment
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    250,000 pcs per month

1 KΩ TY0028B04 Ignition Suppression Resistor Good Insulation and Electrical Properties

Good Insulation and Electrical Properties , 1 KΩ Red Bended Spark Plug Resistor , Long Life





1. Competitive Advantage of TY Resistor:

  1. Good heat and weather resistance
  2. Excellent acid and alkali resistance
  3. Outstanding electrical characteristics and insulating property
  4. Low hydroscopic property.
  5. No obvious pungent smell, nontoxic, no harm to body
  6. No deformation, no dilatation
  7. Cars with TY resistor can be drived more than 50,000 km or 3 years
  8. Can be designed and developed according to customer’s requirements



2. Functions:

  1. connect high voltage ignition cable and distributor, help ignition
  2. Widely used in electronics, auto parts, and machinery etc.



3. Followed Regulations of TY Resistor:



PBT Requirements

Tensile Strength

ISO527-2:1993

Elongation at break

ISO527-2:1993

Flexural Strength

ISO178:2004

Flexural Modulus

ISO178:2004

Izod impact strength

ISO180:2000

Dielectric Constant

IEC60250:1969

Dielectric Strength

IEC60243-1:1998

Volume Resistivity(1011)

IEC60093:1980

Thermal deformation temperature(1.82Mpa)

ISO75-2:2004

Melt flow rate(205℃)

ISO1133:2005

Flame Retardant

UL94:2006

Glass Fiber content

ISO3451-1:2008

Product Requirements (as a part of vehicle)

ISO 6856

ISO 3808





4. Specifications of TY resistor:



Resistance

1KΩ±20%

Color

Red

Withstand voltage

≥30KV

Usage temperature

-20℃-155℃

Insertion and removal forces

20N-70N

Material

PBT

Assembly way

Injection

Assembly dimension: connecting ignition wire

1 KΩ TY0028B04 Ignition Suppression Resistor Good Insulation and Electrical Properties 0

Inner diameter: connecting Spark Plug

1 KΩ TY0028B04 Ignition Suppression Resistor Good Insulation and Electrical Properties 1
