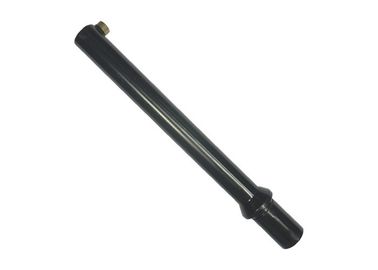

High Temperature Plastic Resistor Connect Spark Plug And High Voltage Cable

High Temperature Plastic Resistor Connect Spark Plug And High Voltage Cable
High Temperature Plastic Resistor Connect Spark Plug And High Voltage Cable

Large Image :  High Temperature Plastic Resistor Connect Spark Plug And High Voltage Cable

Product Details:
Place of Origin: CHINA
Brand Name: TY
Certification: ISO/TS 16949: 2009
Model Number: TY0009B04
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiation
Packaging Details: Based on customer's demand
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 250,000 pcs per month

High Temperature Plastic Resistor Connect Spark Plug And High Voltage Cable

Description
Product Name: Spark Plug Resistor Material: EMC
Color: Black Resistance: 5KΩ±20%
Feature: High Temp And Voltage Resistance Customers: BorgWarner, JANMOR Etc.
High Light:

Spark Plug Resistance

,

Resistor Spark Plug

Withstand High Temperature Plastic Resistor , connecting Spark Plug and High Voltage Cable







1. Specifications:



Raw material properties



Density (g/cm3)

1.9-2.1

Water absorptivity (%)

≤0.2

Molding shrinkage rate (%)

≤0.8

Combustion (grade)

VO

Bending strength (Mpa)

≥90

Surface resistivity (Ω)

≥1.0 X 1012

Volume resistivity (Ω.m)

≥1.0 X 1011

Electrical strength (MV/m)

≥12

Compared with the resistance to leakage from the index

≥600

Charpy unnotched impact strength (KJ/m2)

≥7.0

Charpy notched impact strength (KJ/m2)

≥2.0

Load heat distortion temperature (℃)

≥180

Mobility

≥10.5

Tensile strength (Mpa)

≥48

Product characteristics



Resistance (KΩ)

5±20%

Color

Black

Withstand voltage (KV)

≥30KV

Usage temperature (℃)

-30-200

Insertion and removal forces (N)

20-70

Material

 EMC

Assembly way

Injection molding

Assembly dimension: connecting ignition wire

High Temperature Plastic Resistor Connect Spark Plug And High Voltage Cable 0

Inner diameter: connecting Spark Plug

High Temperature Plastic Resistor Connect Spark Plug And High Voltage Cable 1





2. Description:

  • Heat and weather resistance
  • Acid and alkali resistance
  • Great electrical characteristics and insulating property
  • Low hydroscopic property
  • Usage temperature can be -30℃~200℃.
  • No deformation, no dilatation
  • Useful time is more than 50,000 km or 3 years
  • Can be designed and developed according to customer’s requirements



3. Applications:

  • used in the ignition system of auto engine



High Temperature Plastic Resistor Connect Spark Plug And High Voltage Cable 2
