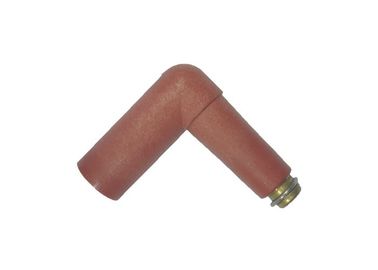

TY0020B04 Red Spark Plug Resistor Spark Plug Cap Resistor with Contributor

TY0020B04 Red Spark Plug Resistor Spark Plug Cap Resistor with Contributor

  • High Light

    Spark Plug Resistance

    ,

    Resistor Type Spark Plugs

  • Color
    Red
  • Material
    PBT
  • Resistance
    1KΩ±20%
  • Application
    Auto Ignition System
  • Type
    Injection Parts
  • Customers
    BorgWarner, JANMOR Etc.
  • Place of Origin
    CHINA
  • Brand Name
    TY
  • Certification
    ISO/TS 16949: 2009
  • Model Number
    TY0020B04
  • Minimum Order Quantity
    1000 pcs
  • Price
    negotiation
  • Packaging Details
    Based on customer's demand
  • Delivery Time
    15 working days after payment
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    250,000 pcs per month

TY0020B04 Red Spark Plug Resistor Spark Plug Cap Resistor with Contributor

Red PBT Spark Plug Resistor assembled with Contributor , No Dilatation







Recognition of resistor:

  1. connect high voltage ignition cable and distributor, help ignition
  2. Widely used in electronics, auto parts, and machinery etc.



Basic Information of TY resistor:



Resistance (KΩ)

1±20%

Color

Red

Withstand voltage (KV)

≥30

Usage temperature (℃)

-20-155

Insertion and removal forces (N)

20-70

Material

PBT

Assembly way

Injection

Assembly dimension: connecting ignition wire

TY0020B04 Red Spark Plug Resistor Spark Plug Cap Resistor with Contributor 0

Inner diameter: connecting Spark Plug

TY0020B04 Red Spark Plug Resistor Spark Plug Cap Resistor with Contributor 1







Followed Regulations of TY Resistor:



PBT Requirements

Tensile Strength

ISO527-2:1993

Elongation at break

ISO527-2:1993

Flexural Strength

ISO178:2004

Flexural Modulus

ISO178:2004

Izod impact strength

ISO180:2000

Dielectric Constant

IEC60250:1969

Dielectric Strength

IEC60243-1:1998

Volume Resistivity(1011)

IEC60093:1980

Thermal deformation temperature(1.82Mpa)

ISO75-2:2004

Melt flow rate(205℃)

ISO1133:2005

Flame Retardant

UL94:2006

Glass Fiber content

ISO3451-1:2008

Product Requirements (as a part of vehicle)

ISO 6856

ISO 3808





Competitive Advantage of TY Resistor:

  1. Good heat and weather resistance
  2. Excellent acid and alkali resistance
  3. Outstanding electrical characteristics and insulating property
  4. Low hydroscopic property.
  5. No obvious pungent smell, nontoxic, no harm to body
  6. No deformation, no dilatation
  7. Cars with TY resistor can be drived more than 50,000 km or 3 years
  8. Can be designed and developed according to customer’s requirements
