Product Details:
|
| Type: | Injection Parts | Feature: | High / Low Temp Resistant |
|---|---|---|---|
| Customers: | BorgWarner Etc. | Application: | Auto Ignition System |
| High Light: | Spark Plug Resistance,Resistor Type Spark Plugs |
||

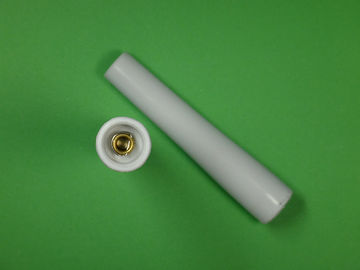

1 KΩ Straight White PBT Resistor assembled with Spark Plug , No Deformation
Followed Regulations of TY Resistor:
|
PBT Requirements |
Tensile Strength |
ISO527-2:1993 |
|
Elongation at break |
ISO527-2:1993 |
|
|
Flexural Strength |
ISO178:2004 |
|
|
Flexural Modulus |
ISO178:2004 |
|
|
Izod impact strength |
ISO180:2000 |
|
|
Dielectric Constant |
IEC60250:1969 |
|
|
Dielectric Strength |
IEC60243-1:1998 |
|
|
Volume Resistivity(1011) |
IEC60093:1980 |
|
|
Thermal deformation temperature(1.82Mpa) |
ISO75-2:2004 |
|
|
Melt flow rate(205℃) |
ISO1133:2005 |
|
|
Flame Retardant |
UL94:2006 |
|
|
Glass Fiber content |
ISO3451-1:2008 |
|
|
Product Requirements (as a part of vehicle) |
ISO 6856 |
|
|
ISO 3808 |
||
Specifications of TY resistor:
|
Resistance (KΩ) |
1±20% |
|
Color |
White |
|
Withstand voltage (KV) |
≥30 |
|
Usage temperature (℃) |
-20-155 |
|
Insertion and removal forces (N) |
20-70 |
|
Material |
PBT |
|
Assembly way |
Injection |
|
Assembly dimension: connecting ignition wire |
|
|
Inner diameter: connecting Spark Plug |
 |
Competitive Advantage of TY Resistor:
Applications:
