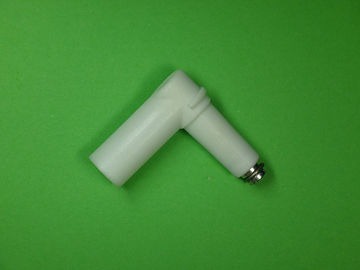

90 Degree Bended White PBT Resistor Assembled With Distributor , Damping Concentration
  • name

90 Degree Bended White PBT Resistor Assembled With Distributor , Damping Concentration

MOQ: 1000 pcs
Price: negotiation
Standard Packaging: Based on customer's demand
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 250,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0015B04
Color:
White
Type:
Injection Parts
Feature:
High / Low Temp Resistant
Customers:
BorgWarner Etc.
Highlight:

Spark Plug Resistance

,

Resistor Spark Plug

Product Description

90 Degree Bended White PBT Resistor assembled with Distributor , Damping Concentration







1. Basic Features:



Item

Specification

Resistance (KΩ)

1±20%

Color

White

Withstand voltage (KV)

≥30

Usage temperature (℃)

-20-155

Insertion and removal forces (N)

20-70

Material

PBT

Assembly way

Injection

Assembly dimension: connecting ignition wire

90 Degree Bended White PBT Resistor Assembled With Distributor , Damping Concentration 0

Inner diameter: connecting Spark Plug

90 Degree Bended White PBT Resistor Assembled With Distributor , Damping Concentration 1







2. Followed Regulations of TY Resistor:



PBT Requirements

Tensile Strength

ISO527-2:1993

Elongation at break

ISO527-2:1993

Flexural Strength

ISO178:2004

Flexural Modulus

ISO178:2004

Izod impact strength

ISO180:2000

Dielectric Constant

IEC60250:1969

Dielectric Strength

IEC60243-1:1998

Volume Resistivity(1011)

IEC60093:1980

Thermal deformation temperature(1.82Mpa)

ISO75-2:2004

Melt flow rate(205℃)

ISO1133:2005

Flame Retardant

UL94:2006

Glass Fiber content

ISO3451-1:2008

Product Requirements (as a part of vehicle)

ISO 6856

ISO 3808





3. Competitive Advantage of TY Resistor:

  • Good heat and weather resistance
  • Excellent acid and alkali resistance
  • Outstanding electrical characteristics and insulating property
  • Low hydroscopic property.
  • No obvious pungent smell, nontoxic, no harm to body
  • No transformation, no dilatation
  • Cars with TY resistor can be drived more than 50,000 km or 3 years
  • Can be designed and developed according to customer’s requirements



4. Applications:

  • Widely used in electronics, auto parts, and machinery etc.
  • This product is used in the ignition system of auto engine
