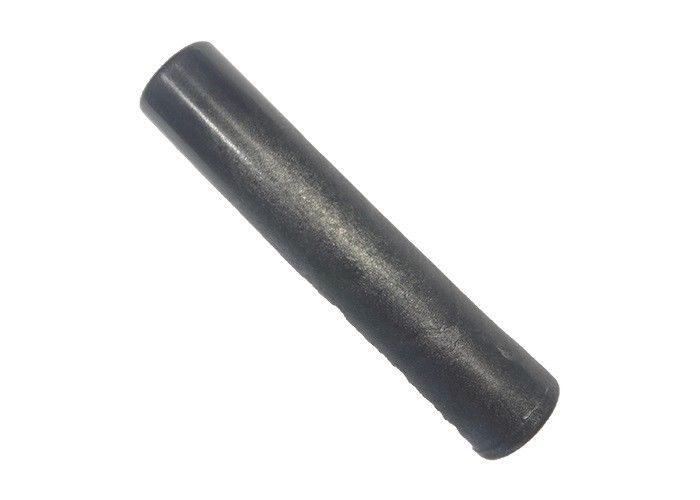

Name: High and Low Temperature Resistant PBT Spark Plug Resistor for Auto Engine
Brand: Nanjing Tianyi Automobile Electric Manufacturing Co., Ltd.
SKU: TY0004B04
Availability: InStock

MOQ:	1000 pcs
Price:	negotiation
Standard Packaging:	Based on customer's demand
Delivery Period:	15 working days after payment
Payment Method:	T/T, Western Union
Supply Capacity:	250,000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

ISO/TS 16949: 2009

Model Number

TY0004B04

Application:

High Voltage Ignition System

Resistance:

5KΩ±20%

Color:

Black

Feature:

High And Low Temp Resistance, Damping Concentration

Highlight:

Spark Plug Resistance

Resistor Type Spark Plugs

Product Description

High and Low Temperature Resistant PBT Spark Plug Resistor for Auto Engine

1. Description:

Excellent ability on heat resistance and weather resistance, great electrical characteristics and insulating property, as well as low hydroscopic property.
Widely used in electronics, auto parts, and machinery etc.
No obvious pungent smell, no harm to body
Usage temperature is -20℃ ~ 155℃
No transformation, heat resistance, acid and alkali resistance, no dilatation
Resistor can be used more than 50,000 km or 3 years
Can be designed and developed according to customer’s requirements

2. Applications:

Nearby Auto engine, connecting Spark Plug, help ignition

3. Specifications:

Raw Material Properties	Tensile Strength	ISO527-2:1993
	Elongation at break	ISO527-2:1993
	Flexural Strength	ISO178:2004
	Flexural Modulus	ISO178:2004
	Izod impact strength	ISO180:2000
	Dielectric Constant	IEC60250:1969
	Dielectric Strength	IEC60243-1:1998
	Volume Resistivity(10¹¹)	IEC60093:1980
	Thermal deformation temperature(1.82Mpa)	ISO75-2:2004
	Melt flow rate(205℃)	ISO1133:2005
	Flame Retardant	UL94:2006
	Glass Fiber content	ISO3451-1:2008
Product features	Resistance	5KΩ±20%
	Color	Black
	Withstand voltage	≥30KV
	Usage temperature	-20-155℃
	Insertion and removal forces	20N-70N
	Material	PBT Black
	Assembly way	Injection
	Assembly dimension: connecting ignition wire
	Inner diameter: connecting Spark Plug
