PRODUCTS DETAILS

Home > Products >

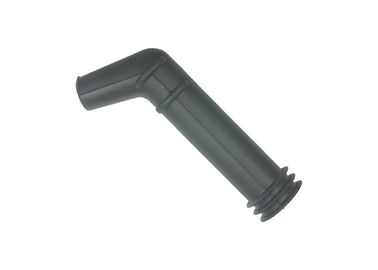

Great Material Physical Properties Sparkplug Boot Spark Plug Wire Boot Replacement

Products

High Voltage DC Contactor

wyp2888@vip.126.com

13813093853

Contact Now

Great Material Physical Properties Sparkplug Boot Spark Plug Wire Boot Replacement

MOQ:	1000
Price:	Negotiation
Standard Packaging:	According to customers
Delivery Period:	15 working days after receviced your payment
Payment Method:	T/T, Western Union
Supply Capacity:	200,000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

ISO/TS 16949: 2009

Model Number

TY0054B01

Features:

Heat, Coldness, Voltage Resistance

Shape:

Straight

Appearance:

Black And Smooth

Application:

High Voltage Ignition System

Highlight:

High Temperature Spark Plug Boot

Spark Plug Components

Product Description

Great Material Physical Properties , Black Polysilicone Rubber Jacket , linking Spark Plug and Wire

1. Specifications of sheath:

Properties of raw material	Shore-A hardness (A)	55±5
	Elongation at break (≥%)	300
	Tear strength (≥N/mm)	15
	Dielectric strength (≥KV/mm)	20
	Tensile strength (≥N/mm²)	6
	Tensile deformation (≤%)	20
	Density (g/cm3)	1.17±0.02
	Withstand voltage (18KV for 30minutes)	NO breakdown
	Surface resistance (≥Ω)	10¹¹
	Ageing resistance	155±2.5℃X168h,Without any cracking
Features of product	Color	Black
	Withstand voltage (≥KV)	30
	Usage temperature (℃)	-20-155
	Material	Silicone rubber
	Diameter of ignition wire end (φ:mm)	6.5±0.5
	Diameter of spark plug end (φ:mm)	9.8±0.5

2. Standard for sheath:

ISO 6856
based on customer's specific requirements

3. Strength of sheath:

Made by silicone rubber, which is colorless and odorless.
Great heat resistance, cold tolerance, and dielectric properties
The highest temp the product can be withstand is 155℃,the lowest is -20℃.
The burr of the parting lines is less than 0.5mm, making product surface very smooth.
The product can be used more than 50,000 km or 3 years.

4. Applications:

used in the ignition system of car engine

5. Competitive advantage:

We have CNC maching center, electrical discharging machine and other processed machine.
We can produce modes individually, helping controling product quality and shortening development cycle.
We can design and develop specific products for customers, meet special requirements.
