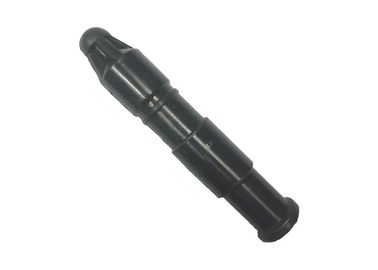

Heat and Cold Resistant High Temperature Spark Plug Boot for Automobile Engine
  • name

Heat and Cold Resistant High Temperature Spark Plug Boot for Automobile Engine

MOQ: 1000
Price: Negotiation
Standard Packaging: According to customers
Delivery Period: 15 working days after receviced your payment
Payment Method: T/T, Western Union
Supply Capacity: 200,000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0053B01
Color:
Black
Material:
Silicone Rubber
Usage Temp:
-20~155℃
Withstand Voltage:
≥30KV
Application:
High Voltage Ignition System
Customers:
BorgWarner, JANMOR Etc.
Highlight:

High Temperature Spark Plug Boot

,

Rubber Spark Plug Boot

Product Description

Heat and Cold Resistant Straight Spark Plug Silicone Rubber Sheath for Car Engine





1. Specifications of sheath:



Properties of raw material

Shore-A hardness (A)

55±5

Elongation at break (≥%)

300

Tear strength (≥N/mm)

15

Dielectric strength (≥KV/mm)

20

Tensile strength (≥N/mm2)

6

Tensile deformation (≤%)

20

Density (g/cm3)

1.17±0.02

Withstand voltage (18KV for 30minutes)

NO breakdown

Surface resistance (≥Ω)

1011

Ageing resistance

155±2.5℃X168h,Without any cracking

Features of product

Color

Black

Withstand voltage (≥KV)

30

Usage temperature (℃)

-20-155

Material

Silicone rubber

Diameter of ignition wire end (φ:mm)

5.5±0.5

Diameter of spark plug end (φ:mm)

9.6±0.5





2. Strength of sheath:

  •  Made by silicone rubber, which is colorless and odorless.
  •  Great heat resistance, cold tolerance, and dielectric properties
  •  The highest temp the product can be withstand is 155℃,the lowest is -20℃.
  •  The burr of the parting lines is less than 0.5mm, making product surface very smooth.
  •  The product can be used more than 50,000 km or 3 years.



3. Standard for sheath:

  •   ISO 6856



4. Applications:

  •  used in the ignition system of car engine



5. Competitive advantage:

  • We have CNC maching center, electrical discharging machine and other processed machine.
  • We can produce modes individually, helping controling product quality and shortening development cycle.
  • We can design and develop specific products for customers, meet special requirements.
