Loop Spark Plug Sheath Silicone Rubber Spark Plug Boot with Great Dielectric Properties

Loop Spark Plug Sheath Silicone Rubber Spark Plug Boot with Great Dielectric Properties

MOQ: 1000
Price: Negotiation
Standard Packaging: Based on customer's demand
Delivery Period: 15 working days after receviced your payment
Payment Method: T/T, Western Union
Supply Capacity: 200,000pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0041B01
Product Name:
Silicone Rubber Sheath
Color:
Black
Shape:
Loop
Function:
Dustproof
Application:
High Voltage Ignition System
Customers:
BorgWarner, JANMOR Etc.
Highlight:

Rubber Spark Plug Boot

,

Spark Plug Components

Product Description

Loop Spark Plug Silicone Rubber Sheath with Great Dielectric Properties







Appearance of product:



Color Black
Material Silicone rubber
Surface smooth
Shape straight and cylinder





Dimension of product:



Burr of the parting lines ≤0.5mm
Diameter of ignition wire end /
Diameter of spark plug end /





Environment for use:

  • Usage temperature: -20℃-155℃



Electrical properties of product:



Dielectric strength ≥20KV/mm
Withstand voltage (18KV for 30minutes) NO breakdown
Surface resistance ≥1011Ω
Withstand voltage ≥30KV






Physical properties of product:



Density 1.17±0.02 g/cm3
Shore-A hardness 55±5A
Tensile strength ≥6N/mm2
Elongation at break ≥300%
Tear strength ≥15N/mm
Tensile deformation ≤20%





Stability of product:

  • Ageing resistance: 155±2.5℃X168h,Without any cracking



Strength of product:

  1. Product has no smell, health for people.
  2. Great heat resistance, cold tolerance, and dielectric properties
  3. Long life: be able to use no less than 50,000 km or 3 years
  4. Based on complete die processing equipments, sheaths can be designed and developed according to customer’s requirements in a short time.



Applications:

  • connect spark plug and High voltage wire, start car by ignition

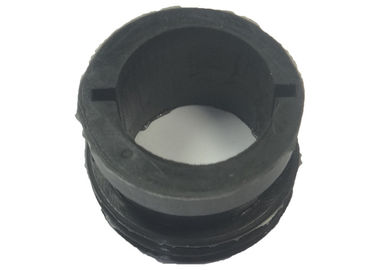

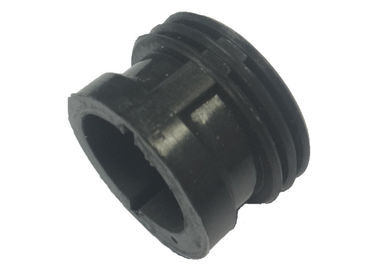

Picture:
