High Voltage Ignition System Spark Plug Wire Connector For Auto Engine 0KΩ

China High Voltage Ignition System Spark Plug Wire Connector For Auto Engine 0KΩ supplier

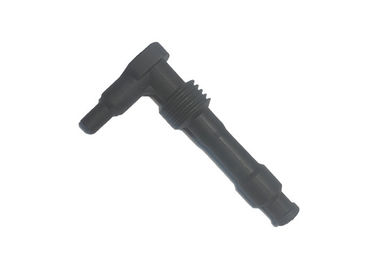

Large Image :  High Voltage Ignition System Spark Plug Wire Connector For Auto Engine 0KΩ

Product Details:

Place of Origin: CHINA
Brand Name: TY
Certification: ISO/TS16949:2009
Model Number: TY0020C01

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: Carton size:400*300*155mm Single carton volume:0.0186m3 Package quantity:540Pcs N.W:9KG;G.W:10KG
Delivery Time: 15 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 200,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Spark Plug Connector/plug/boiler Connector Resistance: 0KΩ
Type: Vulcanization Standard: ISO6856/ISO3808
Application: Used In Ignition Wire Sets Withstand Voltage: ≥30KV
Feature: High And Low Temperature Resistance, With Damping Customers: JANMOR

High Voltage Ignition System Spark Plug Wire Connector for Auto Engine





Technical ditails:



Raw material properties

Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking (155±2.5℃X168h

Product characteristics

Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

113.5+3-6 mm

Resistance

0KΩ

Assembly dimension

Cable entry diameter

6±0.5mm

Assembly dimension: connecting cable

High Voltage Ignition System Spark Plug Wire Connector For Auto Engine 0KΩ

Plug entry diameter

11±0.5mm

Assembly dimension: connecting spark plug

High Voltage Ignition System Spark Plug Wire Connector For Auto Engine 0KΩ





Advantages:



This spark plug connector is made of silicone rubber, which is odorless. Because of its high quality silicone and PPS resistor, it can work in -20℃~155℃. Except for heat resistance, the connector also has great cold tolerance, dielectric properties, acid and alkali resistance. Service life of the connector can be more than 50,000 km or 3 years. During this period, there is no transformation and dilatation ocurring on the product.



Our company has its own machining ceter, which can design and produce molds by ourselves. So both boot and resistor of the connector can be developed according to customer's requirements.



Company:



Established in 1999, Nanjing Tianyi (TY) is a specialized manufacturer of automobile parts such as ignition coils, ignition cable sets, insulating sleeve and resistor for spark plug. Located in Dongping Industrial Park of Lishui County in Nanjing, just 10, 0.5 and 1 kilometers away from Nanjing Lukou International Airport, Jiangsu Yanjiang Highway and Ninghang Highway individually,TY enjoy convenient access to major transportation networks.
