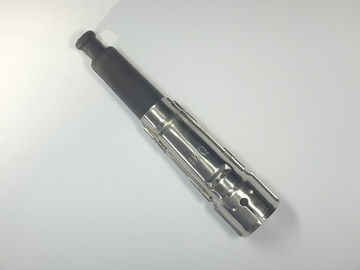

Withstand Acid and Alkali Spark Plug Connectors TY0014C01 for Boiler / Automotive

Withstand Acid and Alkali Spark Plug Connectors TY0014C01 for Boiler / Automotive

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 490*310*190mm;Single carton volume: 0.029m3;Package quantity: 400Pcs/box; N.W: 16KG;G.W: 17KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 200,000 pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0014C01
Features:
Withstand High Voltage
Resistance:
1KΩ±20%
Standard:
ISO 6856 / ISO 3808
Customers:
JANMOR Etc.
Color:
Black And Silver
Type:
Assembly Parts
Highlight:

Spark Plug Wire Connector

,

Ignition Coil Connector

,

Alkali Spark Plug Connectors

Product Description

Withstand Acid and Alkali , Spark Plug Connector / Plug / Boiler Connector , no Electomagnet Interference





Product Features:

  1. The connector has great heat resistance, cold tolerance, and dielectric properties.
  2. The boot of the connector is made by Silicone rubber, which is odorless.
  3. The shield of the product owns a smooth surface. Logo can be added according to the customer.
  4. The shield Can prevent electromagnetic interference.
  5. The connector has the features of no deformation, acid and alkali resistance, and no dilatation.
  6. Automated assembly process make the connector having stable and conforming dimensions.
  7. Service life of the connector is not less than 50,000 km or 3 years.
  8. The spark plug connector can be designed and developed according to customer’s requirements.



Product Specifications:



Raw material properties



Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking

Product characteristics



Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

127±2mm

Resistance

1KΩ±20%

Assembly dimension



Cable entry diameter

6±0.5mm

Assembly dimension: connecting cable

Withstand Acid and Alkali Spark Plug Connectors TY0014C01 for Boiler / Automotive 0

Plug entry diameter

11±0.5mm

Assembly dimension: connecting spark plug

   Withstand Acid and Alkali Spark Plug Connectors TY0014C01 for Boiler / Automotive 1









Applications:

  • The connector is used in the ignition system of auto engine, see picture below:

Withstand Acid and Alkali Spark Plug Connectors TY0014C01 for Boiler / Automotive 2
