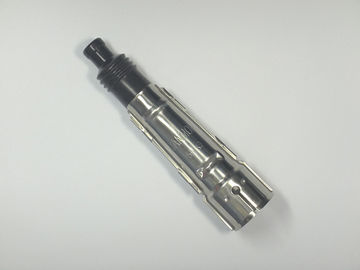

Heat Resistant Spark Plug Connector , High Voltage Ignition Coil Connector TY0023C01

Heat Resistant Spark Plug Connector ,  High Voltage Ignition Coil Connector TY0023C01
Heat Resistant Spark Plug Connector ,  High Voltage Ignition Coil Connector TY0023C01

Large Image :  Heat Resistant Spark Plug Connector , High Voltage Ignition Coil Connector TY0023C01

Product Details:
Place of Origin: CHINA
Brand Name: TY
Certification: ISO/TS 16949: 2009
Model Number: TY0023C01
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: Carton size: 390*315*235mm;Single carton volume: 0.029m3;Package quantity: 500Pcs/box; N.W: 21KG;G.W: 22KG
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 200,000 pcs per month

Heat Resistant Spark Plug Connector , High Voltage Ignition Coil Connector TY0023C01

Description
Name: Spark Plug Connector/plug/boiler Connector Application: High Voltage Ignition System
Resistance: 5KΩ±20% Appearance: Assembly Parts
Standard: ISO 6856 / ISO 3808 Customers: JANMOR
High Light:

Spark Plug Connection

,

Spark Plug Wire Connector

,

Heat Resistant Spark Plug Connector

Heat Resistant Spark Plug Connector / Plug / Boiler Connector ,  Withstand High Voltage







Product Specifications:



Raw material properties



Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking

Product characteristics



Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

113±3 mm

Resistance

5KΩ±20%

Assembly dimension



Cable entry diameter

5±0.5mm

Assembly dimension: connecting cable

Heat Resistant Spark Plug Connector ,  High Voltage Ignition Coil Connector TY0023C01 0

Plug entry diameter

10.5±0.5mm

Assembly dimension: connecting spark plug

   Heat Resistant Spark Plug Connector ,  High Voltage Ignition Coil Connector TY0023C01 1





Product Description:

  • The spark plug connector has great heat resistance, cold tolerance, and dielectric properties.
  • The boot of the connector is made by Silicone rubber, which is odorless.
  • The shield of the product owns a smooth surface. Logo can be added according to the customer.
  • The shield Can prevent electromagnetic interference.
  • The spark plug connector has the features of no deformation, acid and alkali resistance, and no dilatation.
  • Automated assembly process make the connector having stable and conforming dimensions.
  • Service life of the connector is not less than 50,000 km or 3 years.
  • The connector can be designed and developed according to customer’s requirements.



Applications:

  • The connector is used in the ignition system of auto engine, see picture below:

Heat Resistant Spark Plug Connector ,  High Voltage Ignition Coil Connector TY0023C01 2
