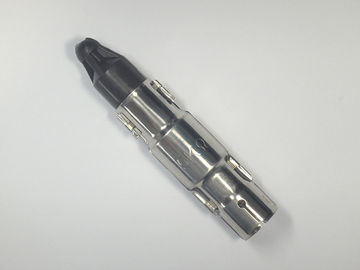

Automotive Ignition Wire Connector Spark Plug Connector Assembly Cold / Heat Tolerance

Automotive Ignition Wire Connector Spark Plug Connector Assembly Cold / Heat Tolerance
Automotive Ignition Wire Connector Spark Plug Connector Assembly Cold / Heat Tolerance

Large Image :  Automotive Ignition Wire Connector Spark Plug Connector Assembly Cold / Heat Tolerance

Product Details:
Place of Origin: CHINA
Brand Name: TY
Certification: ISO/TS 16949: 2009
Model Number: TY0031C01
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: Carton size: 390*315*235mm;Single carton volume: 0.029m3;Package quantity: 500Pcs/box; N.W: 21KG;G.W: 22KG
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 200,000 pcs per month

Automotive Ignition Wire Connector Spark Plug Connector Assembly Cold / Heat Tolerance

Description
Product Name: Spark Plug Connector / Boilder Connector Application: High Voltage Ignition System
Standard: ISO 6856 / ISO 3808 Customers: JANMOR
Resistance: 5KΩ±20% Withstand Voltage: ≥30KV
High Light:

Spark Plug Connection

,

Ignition Coil Connector

,

ISO Auto Spark Plug Connector

Cold and Heat Tolerance Assembly Connectors in Auto Ignition System linking High Voltage Wire







1. Raw material properties for spark plug connector:



Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking





2. Product dimensions:



Cable entry diameter

5.5±0.5mm

Assembly dimension: connecting cable

Automotive Ignition Wire Connector Spark Plug Connector Assembly Cold / Heat Tolerance 0

Plug entry diameter

9.6±0.5mm

Assembly dimension: connecting spark plug

    Automotive Ignition Wire Connector Spark Plug Connector Assembly Cold / Heat Tolerance 1





3. Product characteristics:



Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

100.5±2mm

Resistance

5KΩ±20%





4. Product strenght:

  • Great heat resistance, cold tolerance, and dielectric properties
  • Odoerless and nontoxic silicone rubber jacket
  • Smooth shield with clear Logo, which can be changed according to the customer
  • Prevent electromagnetic intrusion.
  • No deformation, acid and alkali resistance, and no dilatation.
  • Good uniformity of connector's dimension.
  • More than 3 years useful time
  • Can customize



5. Applications:

  • This spark plug connector is used in the ignition system of auto engine, see picture below:
