TY0022C04 High / Low Temp Resistance Wire Set For Spark Plug Linking With Ignition Coil

China TY0022C04 High / Low Temp Resistance Wire Set For Spark Plug Linking With Ignition Coil supplier

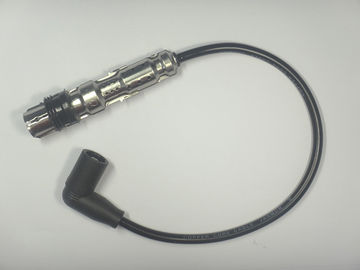

Large Image :  TY0022C04 High / Low Temp Resistance Wire Set For Spark Plug Linking With Ignition Coil

Product Details:

Place of Origin: CHINA
Brand Name: TY
Certification: ISO/TS 16949:2009
Model Number: TY0022C04

Payment & Shipping Terms:

Minimum Order Quantity: 500 Set
Price: Negotiation
Packaging Details: Based on customer's demand
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Ignition Wire Set Application: Auto Ignition System
Feature: High And Low Temp Resistance Withstand Voltage: ≥30KV
Standard: ISO 6856 / ISO 3808 Customer: JANMOR

High Voltage Distributor Cable , linking Spark Plug and Ignition Coil in Car Engine System







1. Product features:

  • Insertion and removal forces: 20N-70N
  • Withstand voltage: ≥30KV
  • Connector ends one: Straight part with shield, 5KΩ±20%
  • Connector ends two: Bended part without shield,1KΩ±20%
  • Tensile strength of the cable and terminal: ≥100N



2. Cable properties:

  • Cable tensile strength: ≥230N
  • Shore hardness: 75±3 SH
  • Diameter of cable: 7±0.3mm
  • Usage temp range: -20℃-155℃



3. Standard:

  • ISO 6856
  • ISO 3808



4. Customer:

  • JANMOR



5. Description:

  • The product is called auto high voltage ignition wire set, also called points cylinder line or distributor cable.
  • One end of high voltage ignition cable is the terminal connecting spark plug and dustproof insulating boot, the other is the terminal connecting ignition coil and dustproof insulating sheath.
  • Usage temp of the product is -20℃~155℃.
  • Appearance of cable:smooth and flat surface, uniform color, clear writing, and no defect
  • Lifetime is not less than 50,000km or 3 years.
  • The product can be designed and developed according to customer’s requirements.



6. Applications:

  • The product applies to the ignition system of auto engine.
