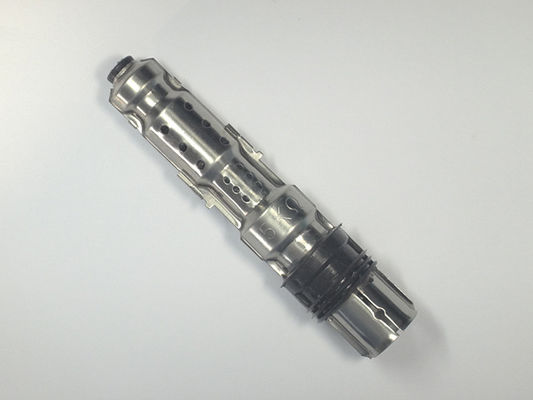

Spark Plug Connection High Voltage Straight Ignition Cable Connectors TY0019C01
  • name

Spark Plug Connection High Voltage Straight Ignition Cable Connectors TY0019C01

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 390*315*235mm；Single carton volume: 0.029m3；Package quantity: 500Pcs/box； N.W: 21.5KG；G.W: 22.5KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 200,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0019C01
Product Name:
Spark Plug Connector / Boilder Connector
Standard:
ISO 6856 / ISO 3808
Customers:
BorgWarner, JANMOR Etc.
Resistance:
5KΩ±20%
Type:
Assembly Parts
Withstand Voltage:
≥30KV
Highlight:

Spark Plug Connection

,

Spark Plug Wire Connector

,

Straight Ignition Cable Connectors

Product Description

Connecting Spark Plug and High Voltage Ignition Cable , Straight Connector with Stable Performance





1. Connector features:

  • Great heat resistance, cold tolerance, and dielectric properties
  • Odoerless and nontoxic silicone rubber jacket
  • Smooth shield with clear Logo, which can be changed according to the customer
  • Prevent electromagnetic intrusion.
  • No deformation, acid and alkali resistance, and no dilatation.
  • Good uniformity of connector's dimension.
  • More than 3 years useful time
  • Can customize



2. Connector material properties:



Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking





3. Connector characteristics:



Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

110±3mm

Resistance

5KΩ±20%





4. Connector dimensions:



Cable entry diameter

5.5±0.5mm

Assembly dimension: connecting cable

Spark Plug Connection High Voltage Straight Ignition Cable Connectors TY0019C01 0

Plug entry diameter

8.5±0.5mm

Assembly dimension: connecting spark plug

    Spark Plug Connection High Voltage Straight Ignition Cable Connectors TY0019C01 1





5. Applications:

  • This spark plug connector is used in the ignition system of auto engine, see picture below:

Spark Plug Connection High Voltage Straight Ignition Cable Connectors TY0019C01 2
