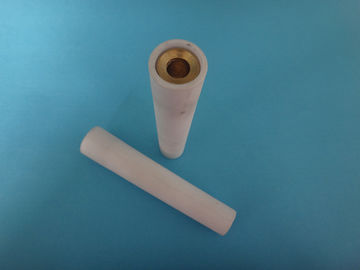

5 KΩ Straight Ceramic Boiler Spark Plug Connection with High Melting Point

5 KΩ Straight Ceramic Boiler Spark Plug Connection with High Melting Point
5 KΩ Straight Ceramic Boiler Spark Plug Connection with High Melting Point

Large Image :  5 KΩ Straight Ceramic Boiler Spark Plug Connection with High Melting Point Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: TY
Certification: ISO/TS 16949: 2009
Model Number: TY0002B05
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiation
Packaging Details: Based on customer's demand
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 50,000 pcs per month
Detailed Product Description
Product Name: Boiler Connector Color: White
Material: Alumina Ceramic Resistance: 5KΩ±20%
Application: For Boiler Ignition Standard: ISO 6856 / ISO 3808
High Light:

Spark Plug Lead Connectors

,

Ignition Lead Connectors

5 KΩ Straight Ceramic Boiler Connector with High Melting Point , Great Insulation , No Deformation





1. Product Basic Information:



Resistance

5KΩ±20%

Color

White

Withstand voltage

≥30KV

Usage temperature

-20-155℃

Insertion and removal forces

20N-70N

Material

Alumina ceramic

Assembly way

Epoxy resin

Lifetime

≥50,000km / ≥ 3 years





2. Ceramic Characteristics:



Volume density

3.9-4.15 g/cm3

Elasticity Modulus

330-380Gpa

Bending strength

≥350Mpa

Coefficient of thermal expansion

8.510-6/K

Thermal conductivity

10.9W/m.K

Luo's hardness

85HRA

AL2O3

94.78%





3. Connector Dimensions:



Assembly dimension: connecting ignition wire

 5 KΩ Straight Ceramic Boiler Spark Plug Connection with High Melting Point 0

Inner diameter: connecting Spark Plug

5 KΩ Straight Ceramic Boiler Spark Plug Connection with High Melting Point 1





4. Connector Features:



Strength



High melting point

Low temp resistance

High hardness

High abrasion resistance

High oxidation resistance

High compressive strength

Stable performance

Can be customized



Weakness



Low tensile strength

Bad plasticity and toughness







6. Applications:

  • Apply to boiler connector

5 KΩ Straight Ceramic Boiler Spark Plug Connection with High Melting Point 2
