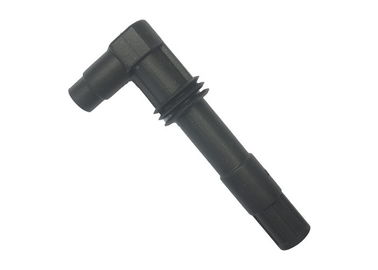

Vulcanization Molding Durable Spark Plug Connector Replacement With PPS Resistor
  • name

Vulcanization Molding Durable Spark Plug Connector Replacement With PPS Resistor

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 390*360*300mm；Single carton volume: 0.042m3；Package quantity: 400Pcs/box； N.W: 23KG；G.W: 24KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 200,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0017C01
Features:
High Temp And Voltage Resistance
Resistance:
5KΩ±20%
Withstand Voltage:
≥30KV
Production Method:
Vulcanization Molding
Standard:
ISO 6856 / ISO 3808
Customers:
BorgWarner, JANMOR Etc.
Color:
Black, Or Others
Material:
Silicone And PPS
Highlight:

Spark Plug Connection

,

Ignition Coil Connector

,

PPS Resistor Spark Plug Connector

Product Description

Durable Spark Plug Connector with PPS Resistor by Vulcanization Molding , work in -20℃~155℃





Features for spark plug connector:

  1. Great heat resistance, cold tolerance, and dielectric properties.
  2. Odorless and nontoxic
  3. Vulcanization molding
  4. No deformation, acid and alkali resistance, and no dilatation.
  5. Excellent uniformity of connector's dimension.
  6. Long life: more than 50,000 km or 3 years.
  7. Can be designed and developed according to customer’s requirements.



Specifications for spark plug connector:



Raw material properties



Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking

Product characteristics



Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

125±2mm

Resistance

5KΩ±20%

Assembly dimension



Plug assembly depth

37.5±2mm
Cable entry diameter 6.25±0.5mm

Assembly dimension: connecting cable

Vulcanization Molding Durable Spark Plug Connector Replacement With PPS Resistor 0

Plug entry diameter

9.5±0.5mm

Assembly dimension: connecting spark plug

    Vulcanization Molding Durable Spark Plug Connector Replacement With PPS Resistor 1









Applications for spark plug connector:

  1. The connector is used in the ignition system of auto engine, see picture below:

Vulcanization Molding Durable Spark Plug Connector Replacement With PPS Resistor 2
