TY0024C04 High Temperature and Voltage Spark Plug Wire Sets for Auto Ignition System

TY0024C04 High Temperature and Voltage Spark Plug Wire Sets for Auto Ignition System

  • High Light

    Ignition Cable Set

    ,

    Spark Plug Cable Set

  • Withstand Voltage
    ≥30KV
  • Usage Temp
    -20℃-155℃
  • Feature
    Heat And Cold Resistance
  • Application
    High Voltage Ignition System
  • Place of Origin
    CHINA
  • Brand Name
    TY
  • Certification
    ISO/TS 16949:2009
  • Model Number
    TY0024C04
  • Minimum Order Quantity
    500 Set
  • Price
    Negotiation
  • Packaging Details
    Based on customer's demand
  • Delivery Time
    15 working days after payment
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100,000 pcs per month

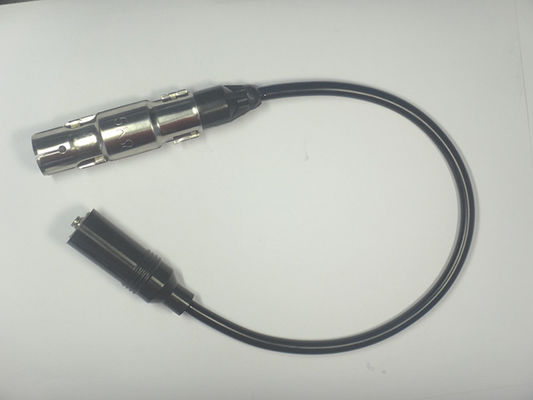

TY0024C04 High Temperature and Voltage Spark Plug Wire Sets for Auto Ignition System

Withstand High Temperature and Voltage Distributor Cable for Auto Ignition System







1. Cable properties:



Cable tensile strength

≥230N

Shore hardness

75±3 SH

Diameter of cable

7±0.3mm

Usage temp range

-20℃-155℃





2. Product features:



Insertion and removal forces

20N-70N

Withstand voltage

≥30KV

Connector ends

Straight part with shield,5KΩ±20%

Straight part without shield,1KΩ±20%

Tensile strength of the cable and terminal



≥100N







3. Description:

  1. The product is called auto high voltage ignition wire set, also called points cylinder line or distributor cable.
  2. One end of high voltage ignition cable is the terminal connecting spark plug and dustproof insulating boot, the other is the terminal connecting ignition coil and dustproof insulating sheath.
  3. Usage temp of the product is -20℃~155℃.
  4. Appearance of cable:smooth and flat surface, uniform color, clear writing, and no defect
  5. Lifetime is not less than 50,000km or 3 years.
  6. The product can be designed and developed according to customer’s requirements.

4. Standard:
  • ISO 6856
  • ISO 3808

5. Customers:
  • JANMOR



6. Applications:

  1. The product applies to the ignition system of auto engine.
