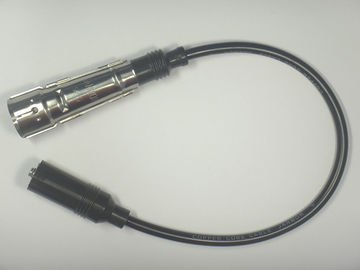

Auto Parts High Voltage Ignition Wire Set , High And Low Temperature Resistance
  • name

Auto Parts High Voltage Ignition Wire Set , High And Low Temperature Resistance

MOQ: 500 Set
Price: Negotiation
Standard Packaging: Based on customer's demand
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 100,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949：2009
Model Number
TY0016C04
Product Name:
High Voltage Ignition Wire Set
Application:
Auto Ignition System
Standard:
ISO 6856 / ISO 3808
Customer:
JANMOR Etc.
Breakdown Voltage:
≥30KV
Usage Temp:
-20℃-155℃
Highlight:

High Performance Spark Plug Wire Set

,

Spark Plug Cable Set

Product Description

Auto parts High Voltage Ignition Wire Set , High and Low Temperature Resistance







1. Cable properties:



Cable tensile strength

≥230N

Shore hardness

75±3 SH

Diameter of cable

7±0.3mm

Usage temp range

-20℃-155℃





2. Product features:



Insertion and removal forces

20N-70N

Withstand voltage

≥30KV

Connector ends

Straight part with shield,5KΩ±20%

Straight part without shield,1KΩ±20%

Tensile strength of the cable and terminal



≥100N







3. Description:

  • The product is called auto high voltage ignition wire set, also called points cylinder line or distributor cable.
  • One end of high voltage ignition cable is the terminal connecting spark plug and dustproof insulating boot, the other is the terminal connecting ignition coil and dustproof insulating sheath.
  • Usage temp of the product is -20℃~155℃.
  • Appearance of cable:smooth and flat surface, uniform color, clear writing, and no defect
  • Lifetime is not less than 50,000km or 3 years.
  • The product can be designed and developed according to customer’s requirements.



4. Applications:

  • The product applies to the ignition system of auto engine.

Auto Parts High Voltage Ignition Wire Set , High And Low Temperature Resistance 0
