TY0003B05 White Smooth Shell Ceramic Resistor with High Compressive Resistance

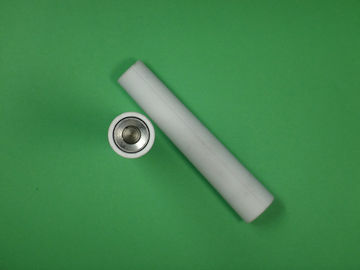

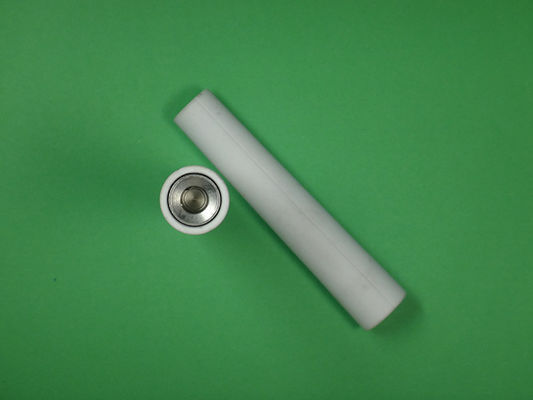

Large Image : TY0003B05 White Smooth Shell Ceramic Resistor with High Compressive Resistance

Product Details:

Place of Origin:	CHINA
Brand Name:	TY
Certification:	ISO/TS 16949: 2009
Model Number:	TY0003B05

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	negotiation
Packaging Details:	Based on customer's demand
Delivery Time:	15 working days after payment
Payment Terms:	T/T, Western Union
Supply Ability:	50,000 pcs per month

Contact Now

TY0003B05 White Smooth Shell Ceramic Resistor with High Compressive Resistance

Description

Applicaiton:	High Voltage Ignition System	Resistance:	5KΩ±20%
Withstand Voltage:	≥30KV	Customers:	BorgWarner, JANMOR Etc.
Standard:	ISO 6856 / ISO 3808	Feature:	High And Low Temp Resistance
Highlight:	Ceramic Power Resistor , Electrical Resistor

White and Smooth Resistor by Ceramic Shell with High Compressive Resistance

1. Raw material properties:

Volume density	3.9-4.15 g/cm³
Elasticity Modulus	330-380 Gpa
Bending strength	≥350 Mpa
Coefficient of thermal expansion	8.5 10^-6/K
Thermal conductivity	10.9 W/m.K
Luo's hardness	85 HRA
AL₂O₃	94.78 %

2. Product characteristics:

Resistance	5KΩ±20%
Color	White
Withstand voltage	≥30KV
Usage temperature	-20℃-155℃
Insertion and removal forces	20N-70N
Material	Alumina ceramic
Assembly way	Epoxy resin
Assembly dimension: connecting ignition wire
Inner diameter: connecting Spark Plug

3. Applications:

Apply to the ignition system of auto engine

4. Features introduction:

The shell of the product adopts special ceramics, which has high melting point, high hardness, high abrasion resistance, and oxidation resistance.
The compressive strength of ceramics is high, but the tensile strength is low, and the plasticity and toughness is not good.
The ceramic shell and resistor of the product is combined by filling epoxy.
Epoxy potting owns high hardness and can resist high and low temperature.
Useful time is not less than 50,000 km or 3 years
Can be designed and developed according to customer’s requirements
