High Voltage Electrical Resistor Ceramic Resistor Directly Assembled With Rubber Boot

High Voltage Electrical Resistor Ceramic Resistor Directly Assembled With Rubber Boot

  • High Light

    Ceramic Power Resistor

    ,

    Electrical Resistor

  • Applicaiton
    High Voltage Ignition System
  • Standard
    ISO 6856 / ISO 3808
  • Customers
    BorgWarner, JANMOR Etc.
  • Feature
    High And Low Temp Resistance
  • Resistance
    5KΩ±20%
  • Withstand Voltage
    ≥30KV
  • Place of Origin
    CHINA
  • Brand Name
    TY
  • Certification
    ISO/TS 16949: 2009
  • Model Number
    TY0026A05
  • Minimum Order Quantity
    1000 pcs
  • Price
    negotiation
  • Packaging Details
    Based on customer's demand
  • Delivery Time
    15 working days after payment
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    50,000 pcs per month

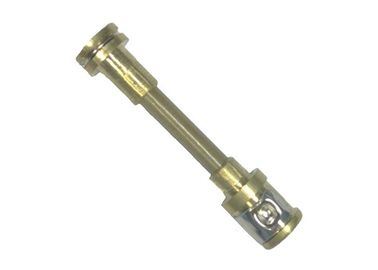

High Voltage Electrical Resistor Ceramic Resistor Directly Assembled With Rubber Boot

5KΩ Straight Resistor without Injection Molding , Directly assembled with Rubber Boot





Specifications of resistor:



Product characteristics



Resistance (KΩ)

5KΩ±20%

Color

/

Withstand voltage (KV)

≥30KV

Usage temperature (℃)

-20~155

Insertion and removal forces (N)

20-70

Material

Copper and core resistor

Assembly way

Punching press

Assembly dimension: connecting ignition wire

    High Voltage Electrical Resistor Ceramic Resistor Directly Assembled With Rubber Boot 0

Inner diameter: connecting Spark Plug

         High Voltage Electrical Resistor Ceramic Resistor Directly Assembled With Rubber Boot 1





Features of resistor:

  1. High hardness and great high and low temperature resistance.
  2. Need to place in order, or easy to broken or lose resistance
  3. Useful time is not less than 50,000 km or 3 years
  4. Can be designed and developed according to customer’s requirements



Applications:

  1. Apply to the ignition system of auto engine
