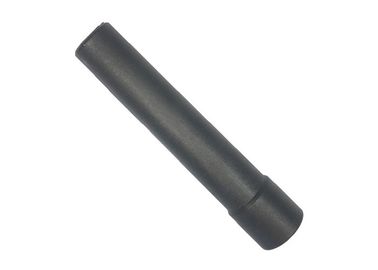

Durable PBT Stable Performance Spark Plug Resistor Injection Molding TY0005B04
  • name

Durable PBT Stable Performance Spark Plug Resistor Injection Molding TY0005B04

MOQ: 1000 pcs
Price: negotiation
Standard Packaging: According to customers' requirements
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 250,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0005B04
Name:
Spark Plug Resistor
Color:
Black
Shape:
Straight
Resistance:
5KΩ±20%
Feature:
High And Low Temp Resistance, Damping Concentration
Customers:
BorgWarner Etc.
Highlight:

Resistor Type Spark Plugs

,

Resistor Spark Plug

Product Description

PBT Spark Plug Resistor , Injection Molding with Stable and Durable Performance





Applications:



  1.    Widely used in electronics, auto parts, and machinery etc.
  2.    This product is used in the ignition system of auto engine



Specifications:



Raw Material Properties



Tensile Strength

ISO527-2:1993

Elongation at break

ISO527-2:1993

Flexural Strength

ISO178:2004

Flexural Modulus

ISO178:2004

Izod impact strength

ISO180:2000

Dielectric Constant

IEC60250:1969

Dielectric Strength

IEC60243-1:1998

Volume Resistivity(1011)

IEC60093:1980

Thermal deformation temperature(1.82Mpa)

ISO75-2:2004

Melt flow rate(205℃)

ISO1133:2005

Flame Retardant

UL94:2006

Glass Fiber content

ISO3451-1:2008

Product features



Resistance

5KΩ±20%

Color

Black

Withstand voltage

≥30KV

Usage temperature

-20℃-155℃

Insertion and removal forces

20N-70N

Material

PBT Black

Assembly way

Injection

Assembly dimension: connecting ignition wire

Durable PBT Stable Performance Spark Plug Resistor Injection Molding TY0005B04 0

Inner diameter: connecting Spark Plug

Durable PBT Stable Performance Spark Plug Resistor Injection Molding TY0005B04 1




Strength of resistor:

  1. Excellent ability on heat resistance and weather resistance, great electrical characteristics and insulating property, as well as low hydroscopic property.
  2. Odorless and nontoxic, no harm to body
  3. No transformation, heat resistance, acid and alkali resistance, no dilatation
  4. Resistor can be used more than 50,000 km or 3 years
  5. Can be designed and developed according to customer’s requirements





Tags:

Resistor Spark Plug,

Resistor Type Spark Plugs,

Spark Plug Resistance
