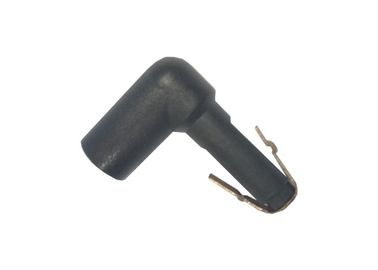

Bended Plastic PBT Resistor Spark Plug With High / Low Temperature Resistance
  • name

Bended Plastic PBT Resistor Spark Plug With High / Low Temperature Resistance

MOQ: 1000 pcs
Price: negotiation
Standard Packaging: Based on customer's demand
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 250,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0013B04
Standard:
ISO 6856 / ISO 3808
Customers:
BorgWarner, JANMOR Etc.
Appearance:
Black With Special Spring
Feature:
High / Low Temp Resistance
Highlight:

Spark Plug Resistance

,

Resistor Type Spark Plugs

Product Description

Bended Plastic PBT Spark Plug Resistor with High / Low Temperature Resistance





Standard:

  1. ISO 6856
  2. ISO 3808



Product Merits:

  1. Excellent heat resistance and weather resistance
  2. Great electrical characteristics and insulating property
  3. Low hydroscopic property.
  4. Odorless, no harm to body
  5. No transformation, acid and alkali resistance, no dilatation
  6. Can be used more than 50,000 km or 3 years
  7. Can be designed and developed according to customer’s requirements



Applications:

  1. Widely used in electronics, auto parts, and machinery etc.
  2. This product is used in the ignition system of auto engine



Product Properties and Dimensions:



Item

Specification

Resistance (KΩ)

1±20%

Color

Black

Withstand voltage (KV)

≥30

Usage temperature (℃)

-20-155

Insertion and removal forces (N)

20-70

Material

PBT black

Assembly way

Injection

Assembly dimension: connecting ignition wire

Bended Plastic PBT Resistor Spark Plug With High / Low Temperature Resistance 0

Inner diameter: connecting Spark Plug

Bended Plastic PBT Resistor Spark Plug With High / Low Temperature Resistance 1







Raw Material Properties of Product:



Item

Standard

Tensile Strength

ISO527-2:1993

Elongation at break

ISO527-2:1993

Flexural Strength

ISO178:2004

Flexural Modulus

ISO178:2004

Izod impact strength

ISO180:2000

Dielectric Constant

IEC60250:1969

Dielectric Strength

IEC60243-1:1998

Volume Resistivity(1011)

IEC60093:1980

Thermal deformation temperature(1.82Mpa)

ISO75-2:2004

Melt flow rate(205℃)

ISO1133:2005

Flame Retardant

UL94:2006

Glass Fiber content

ISO3451-1:2008







Tags:

Resistor Spark Plug,

Resistor Type Spark Plugs,

Spark Plug Resistance
