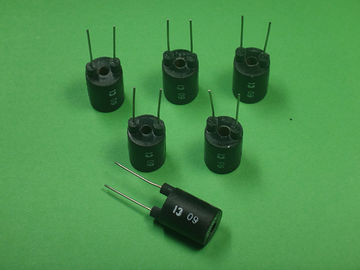

Name: High Temperature Lacquered Wire Induction Coil with Small Volume
Brand: Nanjing Tianyi Automobile Electric Manufacturing Co., Ltd.
SKU: TY0009C05
Availability: InStock

MOQ:	500 PCS
Price:	Negotiation
Standard Packaging:	Box size: 19.712.43.9cm；Package quantity: 150PCS/box；Carton size: 343435cm；Single carton volume: 0.04046m3；Package quantity: 16box/carton, 2400PCS/carton；N.W.: 20.5KG；G.W.: 21.5KG
Delivery Period:	15 working days after payment
Payment Method:	T/T, Western Union
Supply Capacity:	100,000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

ISO/TS 16949: 2009

Model Number

TY0009C05

Product Name:

Frameless Coil For Relay

Color:

Black

Surface:

Smooth Without Bubble, Hole, And Defect

Feature:

High Temperature Resistance

Highlight:

Inductance Coil

Inductive Coil

Product Description

Small Volume Induction Coil with High Temperature Lacquered Wire and High-performance Plastic

1. Description:

The product adopts high-performance EMC plastic material and high-temperature lacquered wire.
Small volume, large power, high performance and good temperature endurance
Apply to vacuum relays, and military field such as aircraft, radar or warship.
Has various different types and be able to develop more kinds as customers’ requirements

2. Applications:

Applicable industries	Specific application
Electronic components	Relay
Mechanical and electrical industry	Different instrument and meter
Military industry	Aircraft, radar, warship

3. Specifications:

Item	Technical Parameter
Working temperature(℃)	-55~125
Rated voltage(V)	26.5
Resistance(Ω)	290±5%
Ampere-turn(A*N)	/
Medium pressure(500V,50Hz)	No leakage
Appearance	Smooth surface, no bubble, blowhole, defect, loose or burr

High Temperature Lacquered Wire Induction Coil with Small Volume 0
