Vacuum Relays 4700Ω Non-frame Micro Inductive Coil with High Temperature Resistance

China Vacuum Relays 4700Ω Non-frame Micro Inductive Coil with High Temperature Resistance supplier

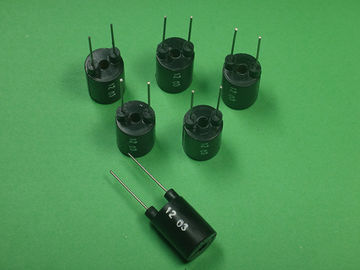

Large Image :  Vacuum Relays 4700Ω Non-frame Micro Inductive Coil with High Temperature Resistance

Product Details:

Place of Origin: CHINA
Brand Name: TY
Certification: ISO/TS 16949: 2009
Model Number: TY0022C05

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: Negotiation
Packaging Details: Box size: 19.7*12.4*3.9cm;Package quantity: 150PCS/box;Carton size: 34*34*35cm;Single carton volume: 0.04046m3;Package quantity: 16box/carton, 2400PCS/carton;N.W.: 20.5KG;G.W.: 21.5KG
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Name: Non-frame Inductive Relay Coil Resistance: 4700Ω±5%
Material: EMC/lacquered Wire Feature: Compact Stucture, Huge Power

4700Ω Non-frame Inductive Micro Coil for Vacuum Relays with Stable Performance





1. Applications:



Applicable industries

Specific application

Electronic components

Relay

Mechanical and electrical industry

Different instrument and meter

Military industry

Aircraft, radar, warship







2. Features:

  • Smooth surface, no bubble,  blowhole, defect, loose or burr
  • Made of high-performance EMC and high-temperature lacquered wire.
  • Small volume but large power
  • High performance and high temperature resistance
  • Apply to vacuum relays, and military field such as aircraft, radar or warship.
  • Be able to develop more kinds as customers’ requirements



3. Specifications:



Item

Technical Parameter

Working temperature(℃)

-55~125

Rated voltage(V)

115

Resistance(Ω)

4700±5%

Ampere-turn(A*N)

/

Medium pressure(500V,50Hz)

No leakage
