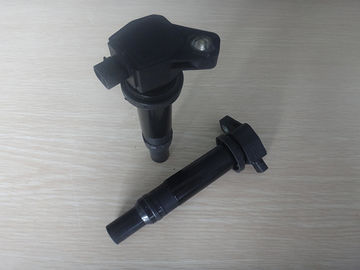

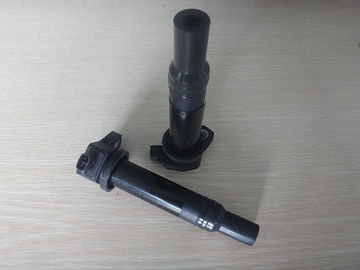

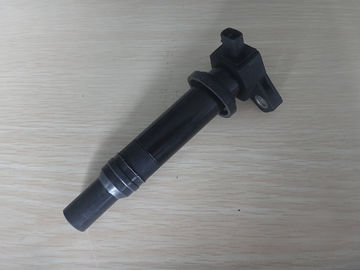

Hyundai AVANTE / ELANTRA / VERNA / MISTRA Car Ignition Coil , OEM 27301-26640

Hyundai AVANTE / ELANTRA / VERNA / MISTRA Car Ignition Coil , OEM 27301-26640

  • High Light

    Auto Ignition Coil

    ,

    Automobile Ignition Coil

  • Type
    Pensile Ignition Coils
  • OEM
    27301-26640
  • Working Environment
    -20℃~150℃
  • Feature
    High Temp / Voltage Resistance, Great Ductility, Can Work In Severe Environment
  • Place of Origin
    CHINA
  • Brand Name
    TY
  • Certification
    ISO/TS 16949: 2009
  • Model Number
    TY0029C05
  • Minimum Order Quantity
    120 PCS
  • Price
    Negotiation
  • Packaging Details
    Box size: 39*18*6.5cm;Package quantity: 1PCS/box;Carton size: 40.5*39.5*43.5cm;Single carton volume: 0.06959m3;Package quantity: 12box/carton, 12PCS/carton;N.W.: 19.5 KG;G.W.: 20.5 KG
  • Delivery Time
    15 working days after payment
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    10,000 pcs per month

Hyundai AVANTE / ELANTRA / VERNA / MISTRA Car Ignition Coil , OEM 27301-26640

Car Ignition Coil 27301-26640 for Beijing Hyundai AVANTE / ELANTRA / VERNA / I30 / ACCENT / MISTRA / IX25



Specifications of coil:



Item

Technical Parameter



Static values before thermal shock test



Primary resistance (mΩ)

600±10%

Primary inductivity (mH)

/

Secondary resistance (kΩ)

6±10%

Secondary inductivity (H)

/



High voltage before thermal shock test



Secondary voltage (kV) 1MΩ

>30

Secondary voltage (kV) 1MΩ 50pF

>25



“30kV”-test before thermal shock test



30kV over 3 min (open load)

OK



Thermal shock test



50 Zyklen (40min -20℃;20min +120℃)

OK



Static values after thermal shock test



Primary resistance (mΩ)

600±10%

Primary inductivity (mH)

/

Secondary resistance (kΩ)

6±10%

Secondary inductivity (H)

/



High voltage after thermal shock test



Secondary voltage (kV) 1MΩ

>30

Secondary voltage (kV) 1MΩ 50pF

>25



“30kV”-test before thermal shock test



30kV over 3 min (open load)

OK



Features of coil:

  1. Made of imported lacquered wire, epoxy, PBT, and silicone rubber, guarantee excellent high temperature and voltage resistance, huge power as well as stable performance
  2. Can be used in the temp of -20℃~150℃
  3. Prevent water, dust and shaking
  4. Can work in severe environment, but keeping great ductility without cracking
  5. Owns a long life
  6. All plastic parts of coil are produced by ourselves, providing high uniformity of products.


Applicable cars:




OEM

Applicable Car Brand

Applicable Model

27301-26640

Beijing Hyundai

AVANTE

ELANTRA

VERNA

I30

ACCENT

MISTRA

IX25
